Toe adjustment

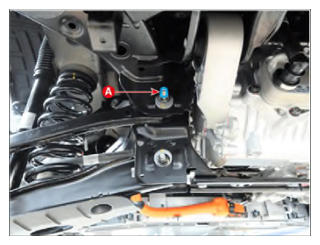

Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolts by the same amount.
Toe
Total: 0.2° ± 0.2°
Individual: 0.1° ± 0.1°
| Cam bolt | Direction of rotation | Toe |
|---|---|---|
| Left side | clockwise | Increase (Toe out) |
| (Driver side) | counterclockwise | Decrease (Toe in) |
| Right side | clockwise | Decrease (Toe in) |
| (Passenger side) | counterclockwise | Increase (Toe out) |
