Disassembly And Reassembly

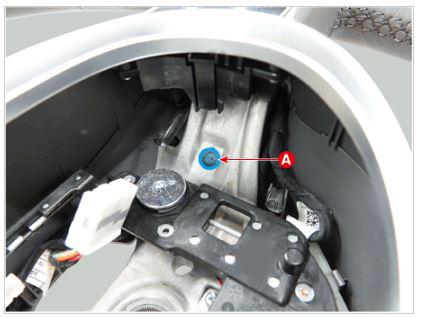

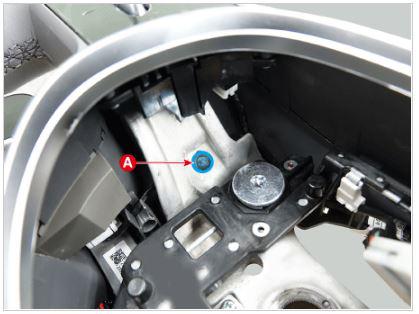

  1. Loosen the paddle shift switch mounting screws (A).
    G15461702Courtesy of HYUNDAI MOTOR AMERICA
    G15461703Courtesy of HYUNDAI MOTOR AMERICA

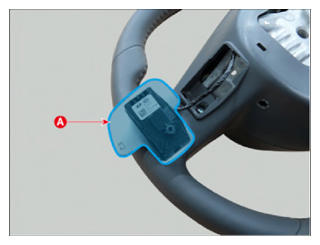

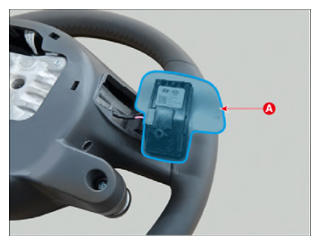

  2. Remove the paddle shift switch (A) after disconnecting the connector.
    G15461704Courtesy of HYUNDAI MOTOR AMERICA
    G15461705Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the remote control switch bezel.

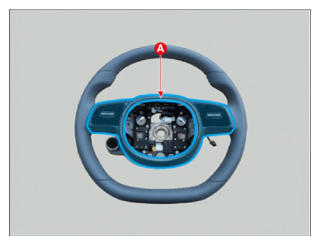

    1. Separate the remote control switch bezel (A).
      G15461706Courtesy of HYUNDAI MOTOR AMERICA

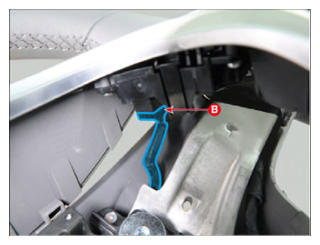

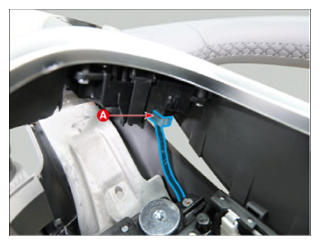

    2. Disconnect the remote control switch connector (A, B).
    G15461707Courtesy of HYUNDAI MOTOR AMERICA
    G15461708Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the drive mode switch.

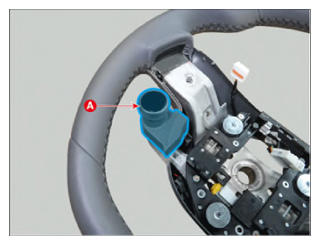

    1. Separate the drive mode switch (A).
      G15461709Courtesy of HYUNDAI MOTOR AMERICA

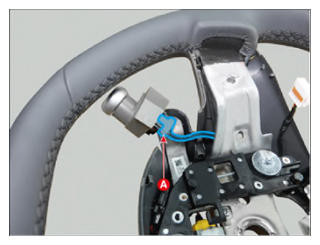

    2. Disconnect the drive mode switch connector (A).
    G15461710Courtesy of HYUNDAI MOTOR AMERICA

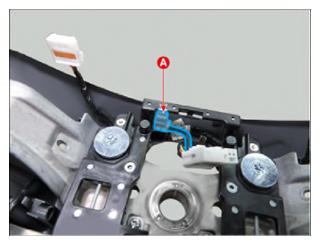

  5. Disconnect the ground (A).
    G15461711Courtesy of HYUNDAI MOTOR AMERICA

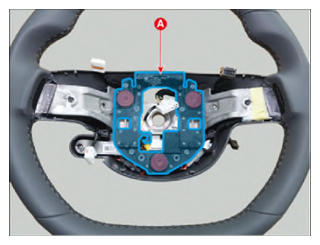

  6. Remove the horn plate (A).
    G15461712Courtesy of HYUNDAI MOTOR AMERICA

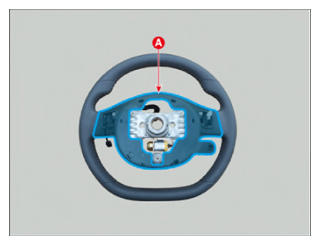

  7. Remove the lower cover (A).
    G15461713Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the wiring harness.

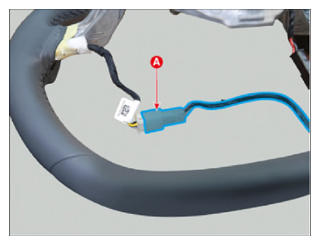

    1. Disconnect the heated steering wheel connector (A).
      G15461714Courtesy of HYUNDAI MOTOR AMERICA

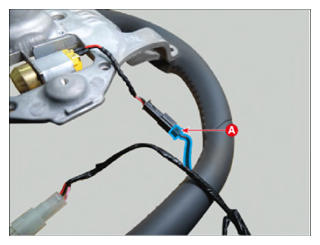

    2. Disconnect the haptic motor connector (A).
    G15461715Courtesy of HYUNDAI MOTOR AMERICA

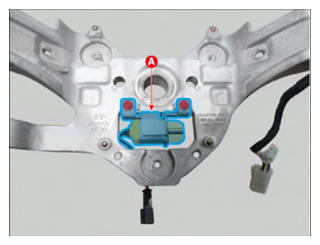

  9. Remove the haptic motor (A).
    G15461716Courtesy of HYUNDAI MOTOR AMERICA
  10. To reassembly, reverse the disassembly procedures.
