IMS Button

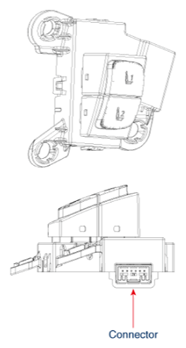

G16203953Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin No Function
G16203954Courtesy of HYUNDAI MOTOR AMERICA
 1 Tail Lamp Illumination (+)
2 -
3 IMS switch
4 -
5 Ground
6 Illumination (-)
