IMS Button
- Disconnect the 12V battery (-) terminal.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")
- Remove the front dear trim.
(Refer to Front Door - " FRONT DOOR TRIM ")

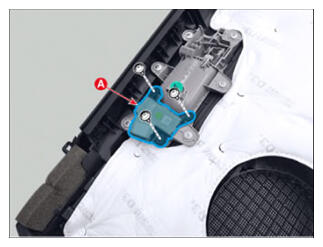

- Remove the IMS switch (A), after removing the screws.
- Install in the reverse order of removal.
