Inspection with Diagnostic Tools
- Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat.
- Start the engine (IGN ON) and turn on the diagnostic device.

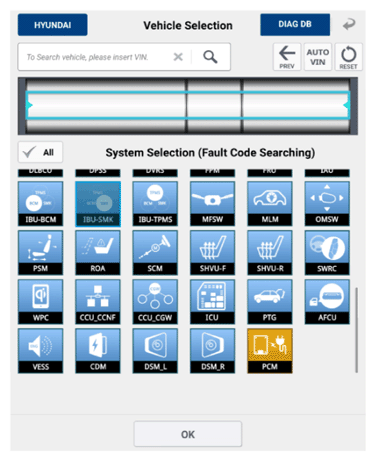

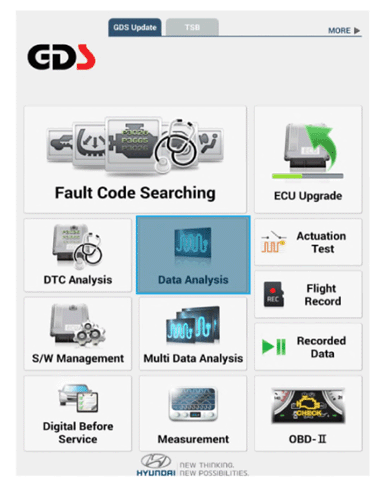

- Select the "Data Analysis" and "Car model".
- You can see the situation of each switch on scanner after connecting the "current data" process.
| Display | Description |
|---|---|
| FL Toggle SW | ON: Push button is ON in the driver door handle. |
| FR Toggle SW | ON: Push button is ON in the assist door handle. |
| Tailgate open SW | ON: Tailgate button is ON. |
| Gear P Position | ON: Shift lever is P position. |
| IGN 1 | ON: IGN switch is IG position. |
| ACC | ON: IGN switch is ACC position. |
| Brake SW | ON: Brake switch is ON. |
