Carrier Assembly: Removal

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the 12V battery (-) terminal.

    (Refer to Vehicle Control System - " AUXILIARY BATTERY (12V)  ")

  2. Drain the motor coolant.

    (Refer to Motor Cooling System - " MOTOR COOLANT  ")

  3. Drain the high voltage battery coolant.

    (Refer to High Voltage Battery Cooling System - " HIGH VOLTAGE BATTERY COOLANT  ")

  4. Recover the refrigerant with a recovery/recycling/charging station.

    (Refer to Heating, Ventilation And Air Conditioning - " REFRIGERANT RECOVERY/RECYCLING/CHARGING/VACUUM  ")

  5. Remove the front bumper beam assembly.

    (Refer to Front End Module -  "FRONT BUMPER BEAM ASSEMBLY ")

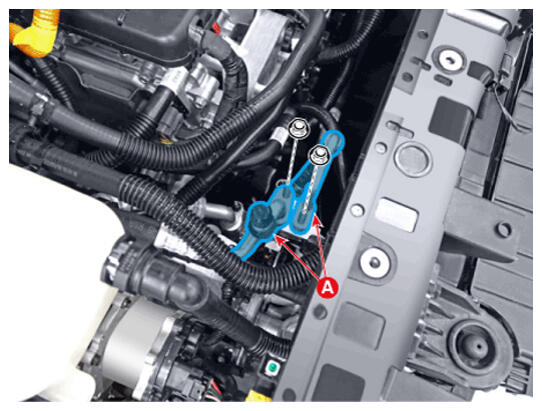

  6. Disconnect the suction & liquid line (A), after removing the nuts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G16200226Courtesy of HYUNDAI MOTOR AMERICA

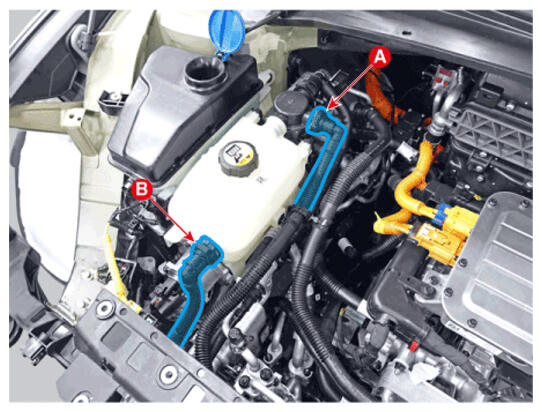

  7. Disconnect the EWP hose (A) and reservoir tank hose (B).
    G16200227Courtesy of HYUNDAI MOTOR AMERICA

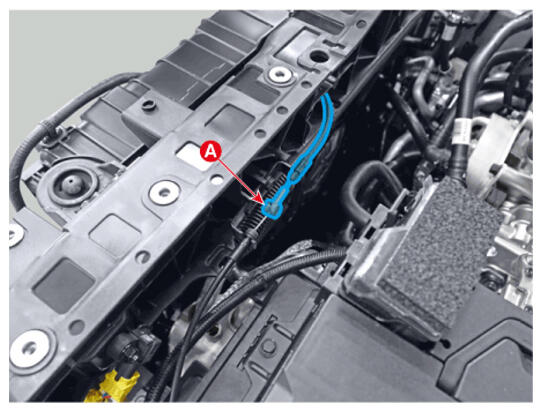

  8. Disconnect the hood latch cable (A).
    G16200228Courtesy of HYUNDAI MOTOR AMERICA

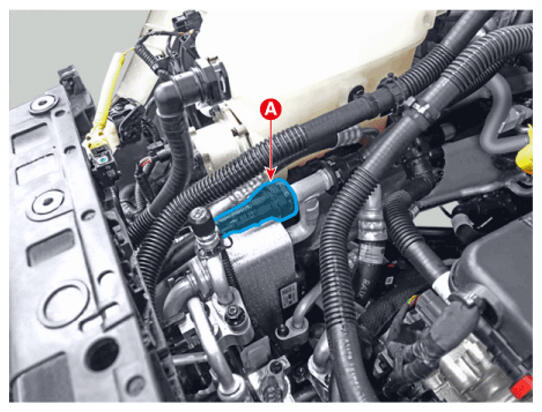

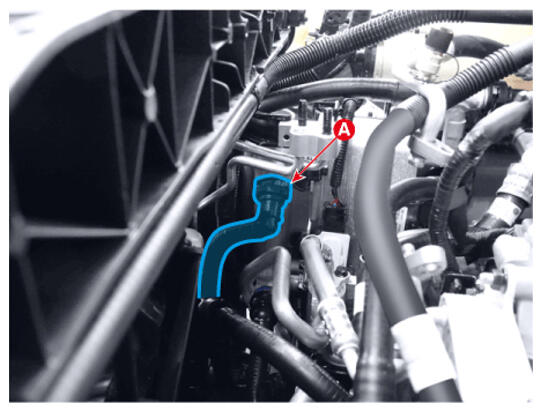

  9. Disconnect the water condenser hose (A).
    G16200229Courtesy of HYUNDAI MOTOR AMERICA
    G16200230Courtesy of HYUNDAI MOTOR AMERICA

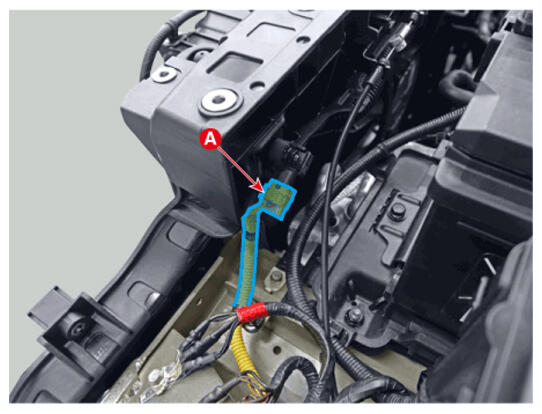

  10. Disconnect the FIS connector (A).

    [LH]

    G16200231Courtesy of HYUNDAI MOTOR AMERICA

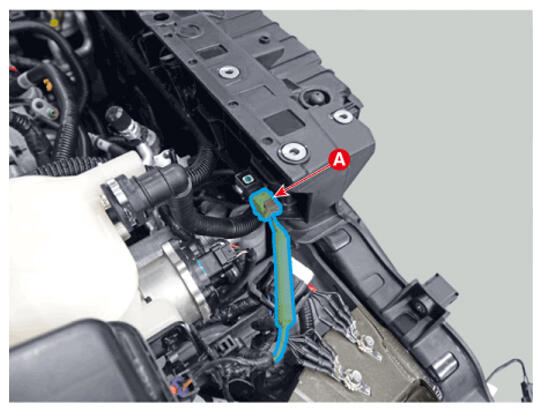

    [RH]

    G16200232Courtesy of HYUNDAI MOTOR AMERICA

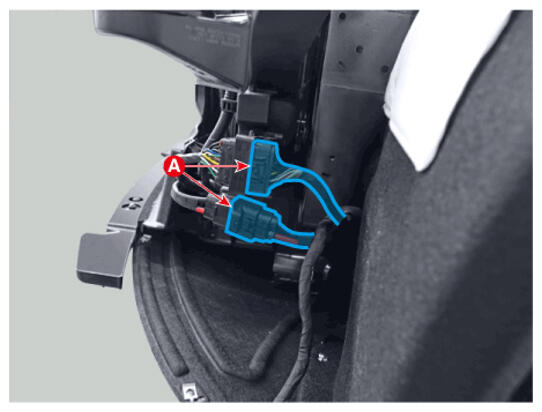

  11. Disconnect the front end module main connector (A).
    G16200233Courtesy of HYUNDAI MOTOR AMERICA

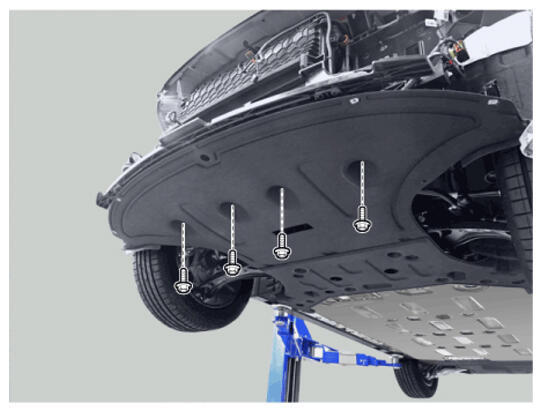

  12. Remove the front end module lower bolts.

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G16200234Courtesy of HYUNDAI MOTOR AMERICA

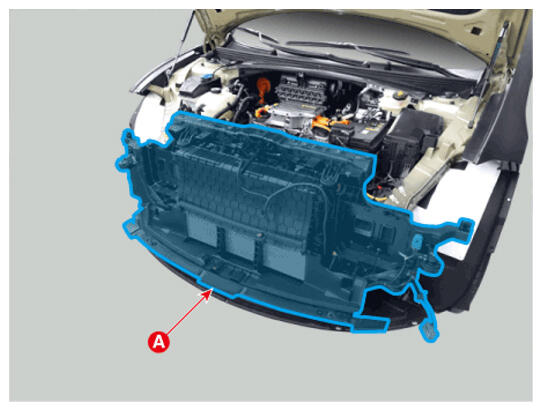

  13. Remove the carrier assembly (A) from the body.
    G16200235Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the stiffener assembly.

    (Refer to Front End Module -  "STIFFENER ASSEMBLY ")

  15. Remove the horn.

    (Refer to Front End Module -  "HORN ")

  16. Remove the smart key buzzer.

    (Refer to Security & Vehicle Ignition System - " SMART KEY SYSTEM  ")

  17. Remove the condenser.

    (Refer to Heating, Ventilation And Air Conditioning - " CONDENSER  ")

  18. Remove the radiator.

    (Refer to Cooling System - " RADIATOR  ")

  19. Remove the hood latch.

    (Refer to Hood - " HOOD LATCH  ")
