Repair Procedures: Inspection

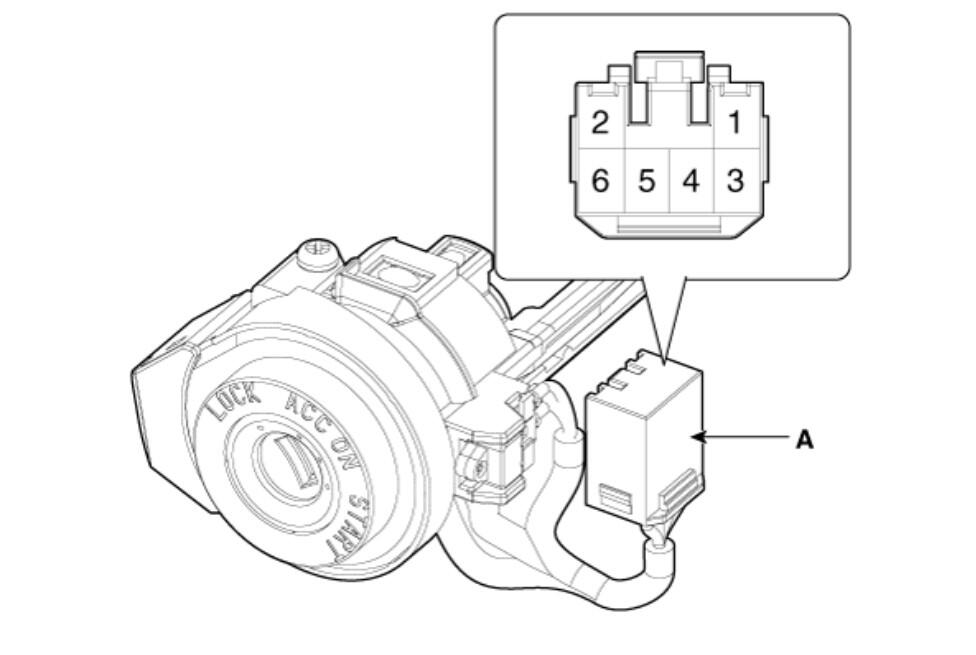

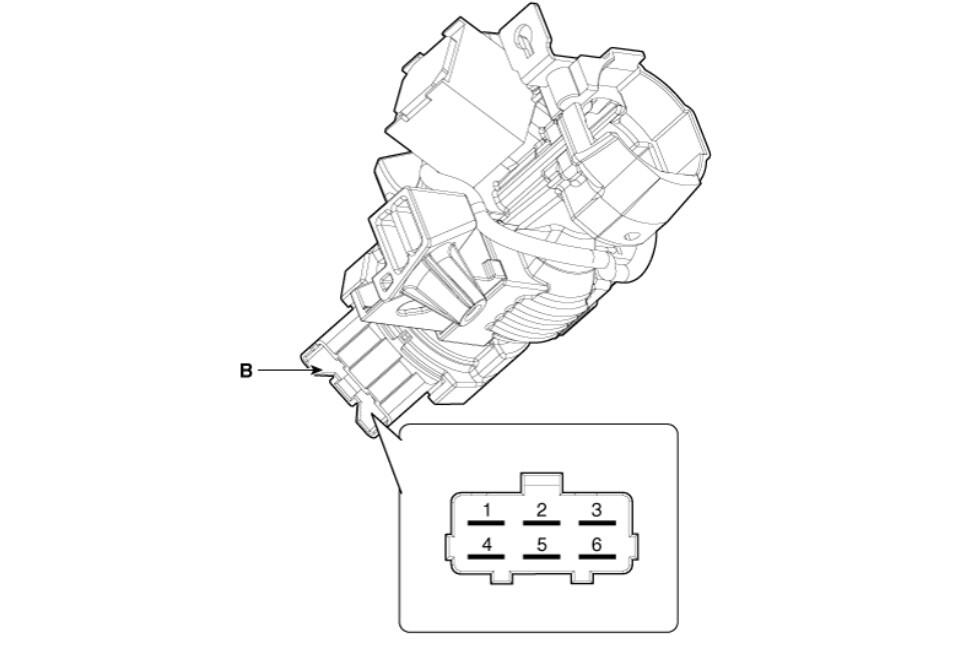

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G16133978Courtesy of HYUNDAI MOTOR AMERICA
    G16133979Courtesy of HYUNDAI MOTOR AMERICA

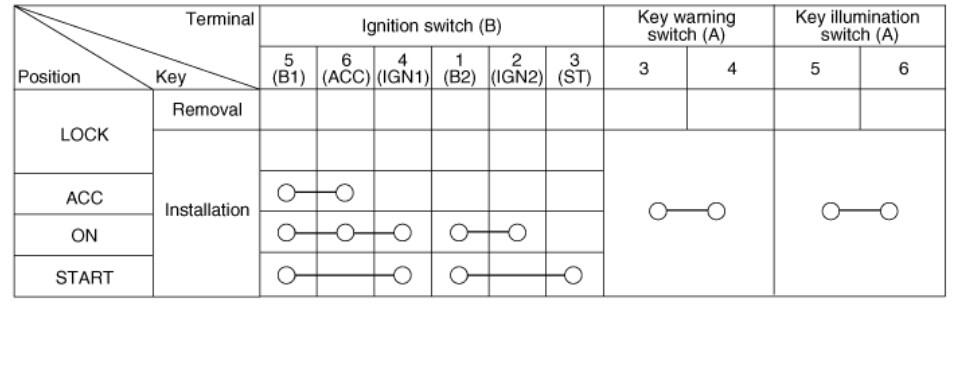

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G16133980Courtesy of HYUNDAI MOTOR AMERICA
