Heated Steering Wheel Control Module (Body Control Module (BCM))

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "Glove Box Upper Cover Assembly REPLACEMENT ")

  3. Remove the smart key unit.

    (Refer to Body - "SMART KEY UNIT ")

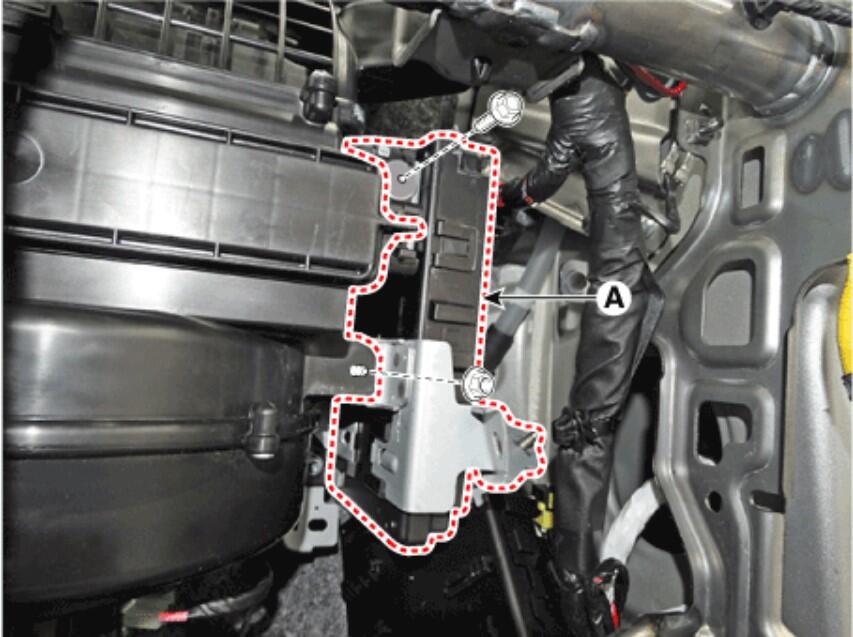

  4. Remove the body control module (A) after loosening the mounting bolt and nuts.
    G16132467Courtesy of HYUNDAI MOTOR AMERICA

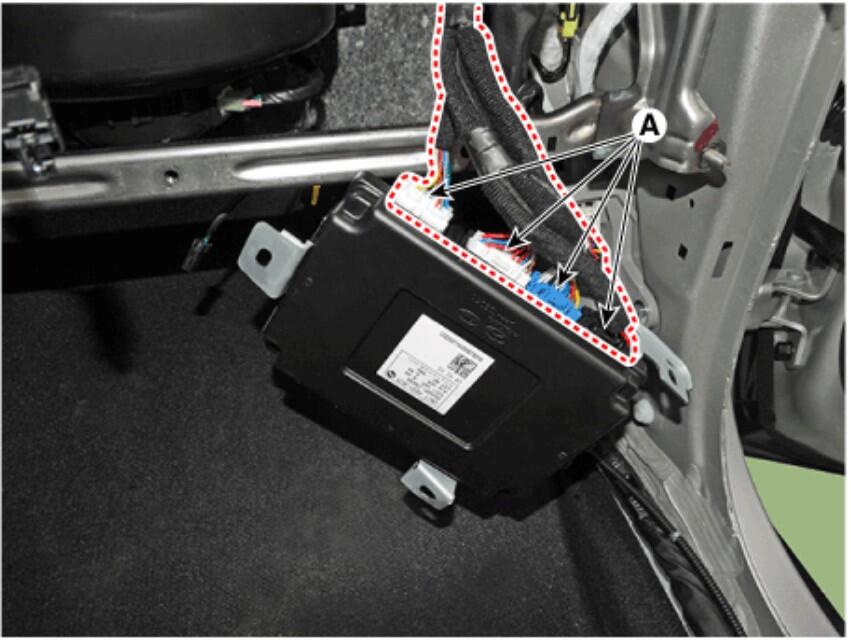

  5. Disconnect the body control module connector (A) and than remove the body control module.
G16132468Courtesy of HYUNDAI MOTOR AMERICA
