Body Control Module

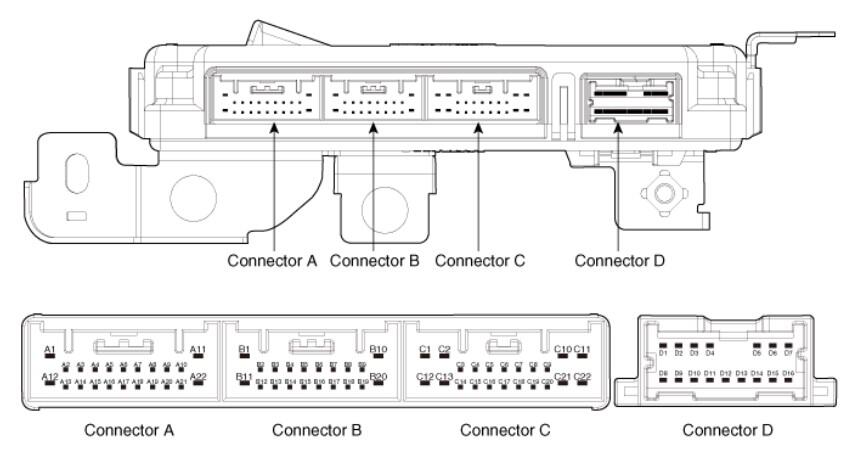

G16132465Courtesy of HYUNDAI MOTOR AMERICA
Pin No. Function
C11 Heated handle
C20 Ignition 2_Heated handle power
A16 Heated handle switch
C19 NTC (-)
B6 NTC (+)
D3 Heated handle IND.
