Repair Procedures: Disassembly

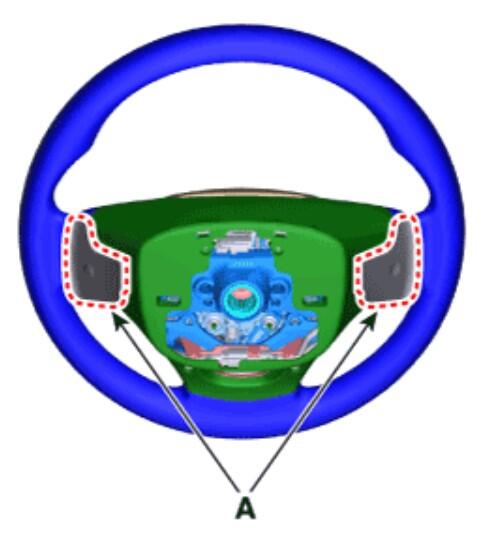

1. Remove the paddle shift switch (A) and then disconnect the connector.

   Courtesy of HYUNDAI MOTOR AMERICA

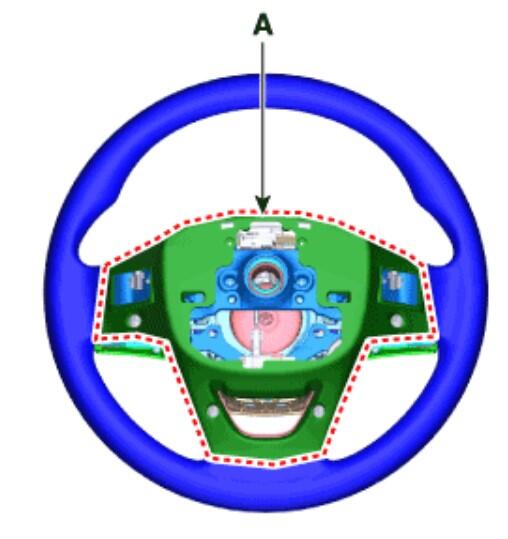

2. Loosen the screw and then remove the lower cover.

   Courtesy of HYUNDAI MOTOR AMERICA

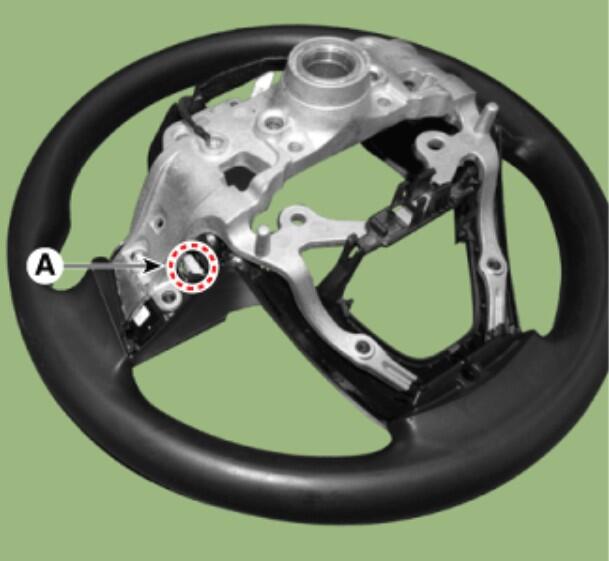

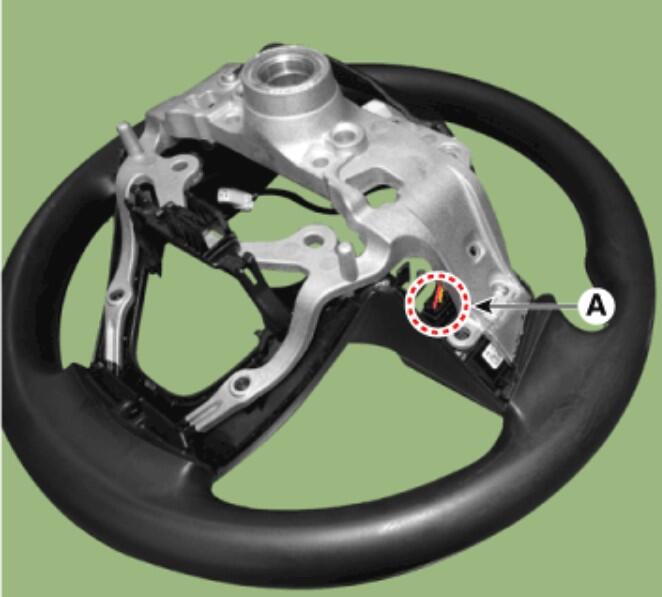

3. Disconnect the remote control switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

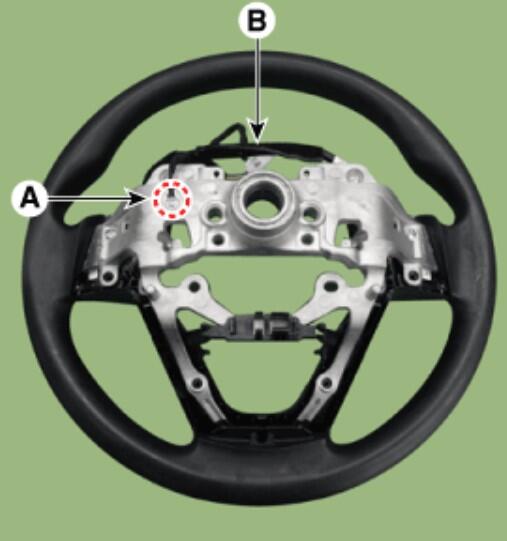

4. Remove the heated steering wheel wiring (B) from the steering wheel after loosening the screw (A).

   Courtesy of HYUNDAI MOTOR AMERICA

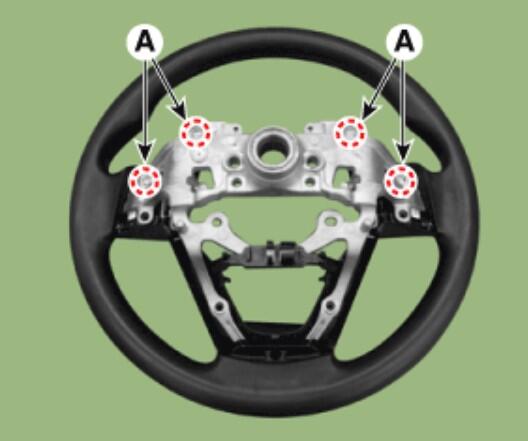

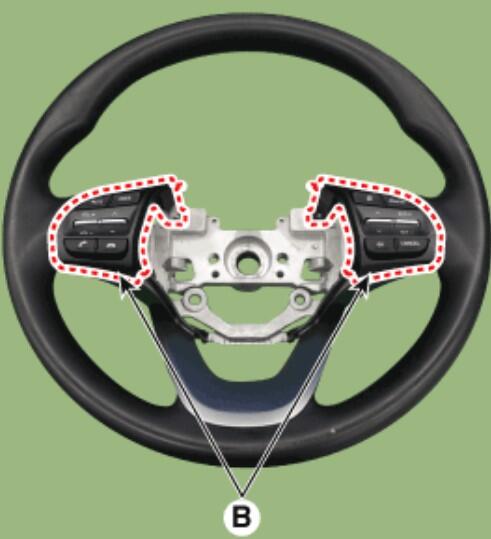

5. Loosen the screw (A) and then remove the remote control switch (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

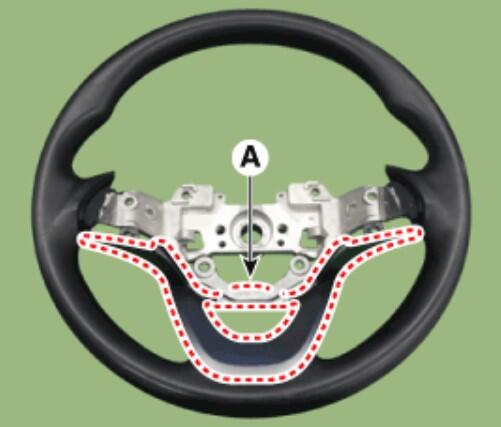

6. Remove the steering wheel ornament (A).

Courtesy of HYUNDAI MOTOR AMERICA
