Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - " CRASH PAD LOWER PANEL  ")

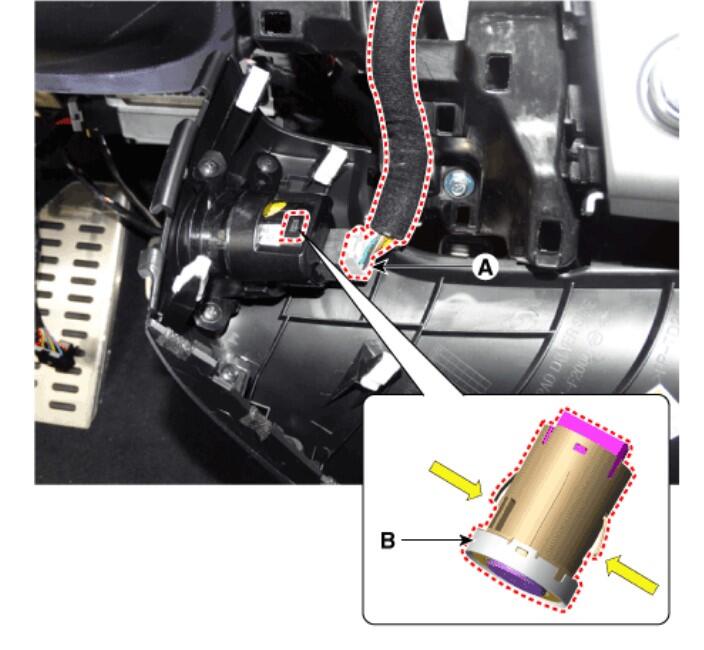

  3. Remove the start/stop button (B) after disconnecting the start/stop button connector (A).
    G16133926Courtesy of HYUNDAI MOTOR AMERICA
