Repair Procedures: Installation

  1. To install, reverse the removal procedure.
NOTE:

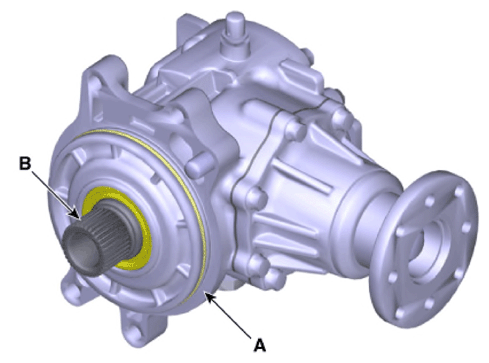

  1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
  2. Smear and cover splines (B) with molybdenum type high pressure grease.

    GREASE:  SPL-1 or equivalent

    G14715027Courtesy of HYUNDAI MOTOR AMERICA

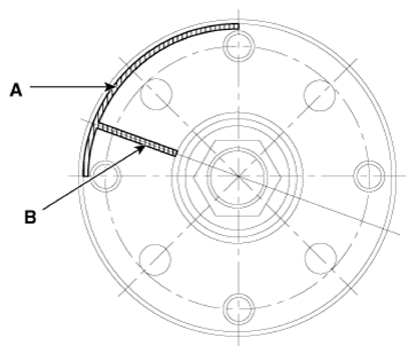

  3. Install the propeller shaft to be near runout marking (Transfer assembly 1ea, propeller shaft 1ea) each other.
    G14715028Courtesy of HYUNDAI MOTOR AMERICA
