Camshaft Position Sensor (CMPS)
›
Repair Procedures
›
Removal
›
Bank 1/Intake
Bank 1/Intake
Turn ignition switch OFF and disconnect the battery negative (-) terminal.

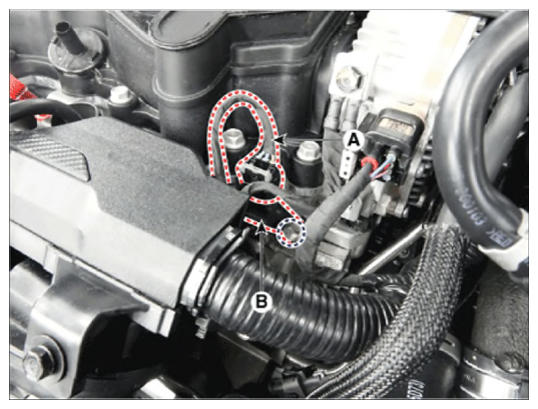

Disconnect the camshaft position sensor connector (A).
Remove the installation bolt, and then remove the sensor (B).
Tightening Torque:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
