Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the intercooner inlet pipe. (Refer to Engine Mechanical System - "INTERCOOLER ")

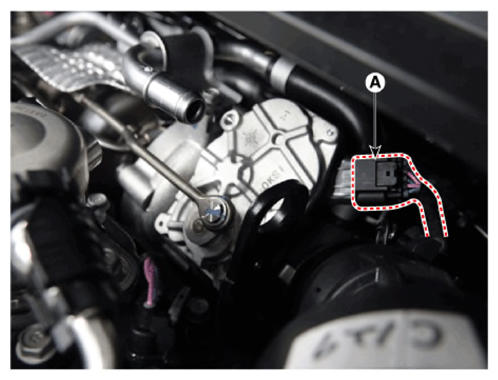

- Disconnect the EWGA connector (A).

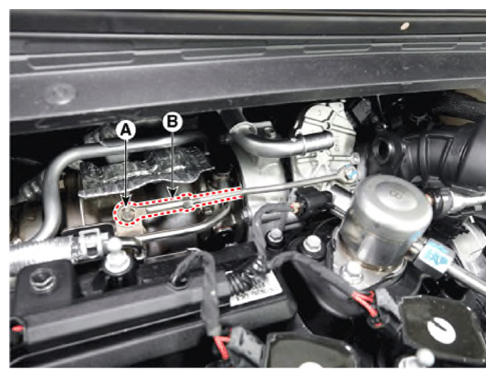

- Remove the shaft link assembly (B) after removing the C-ring (A).

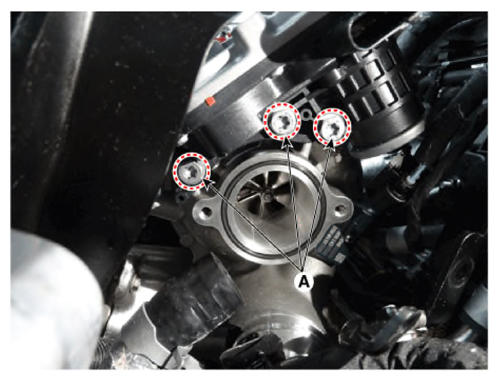

- Remove the EWGA after removing the bolts (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
