Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX ")

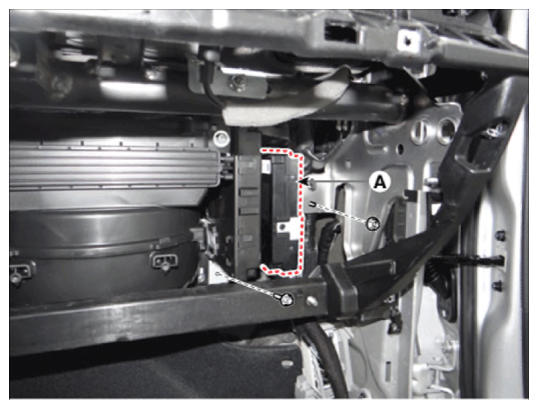

- Remove the smart key unit (A), after loosening the bolt and nut.

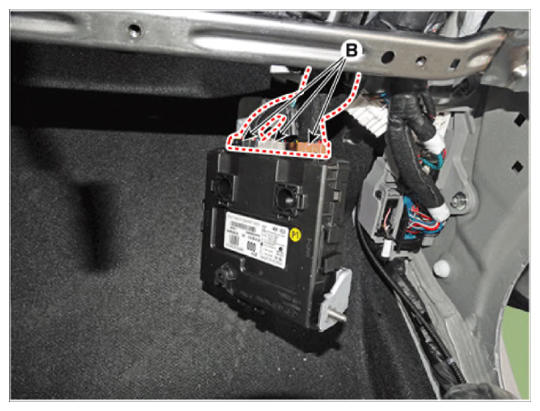

- Disconnect the smart key unit connector (B).
(Refer to Body - "GLOVE BOX ")
