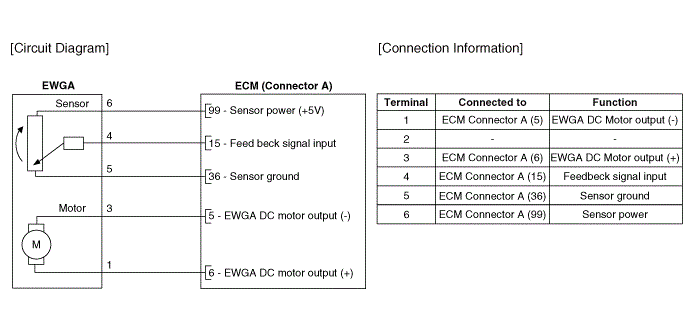

Home › Hyundai › 2023 › Kona N › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Electric WGT Control Actuator › Schematic Diagrams › Circuit Diagram › Notes
