Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Disconnect the battery (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY REPAIR PROCEDURES ")

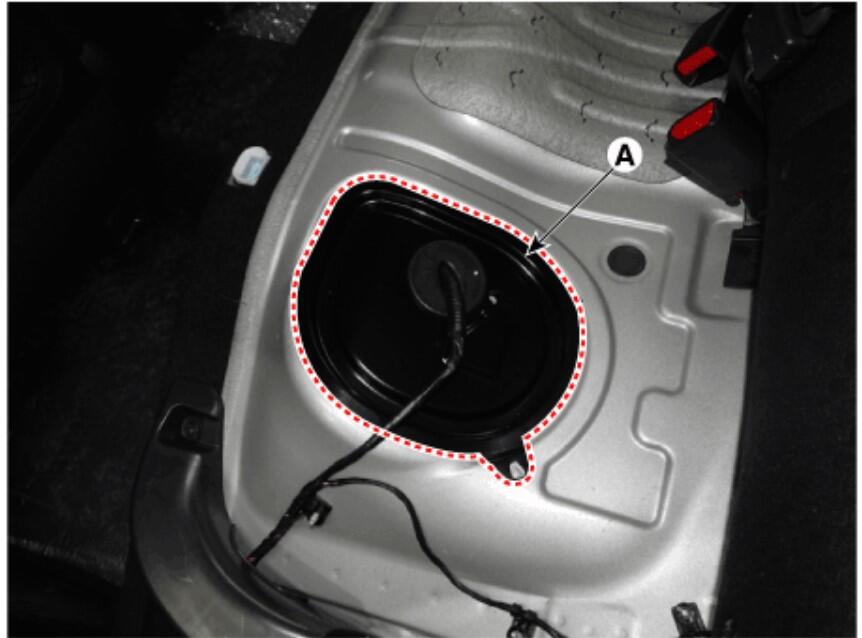

  4. Remove the fuel pump service cover (A).
    G16186259Courtesy of HYUNDAI MOTOR AMERICA

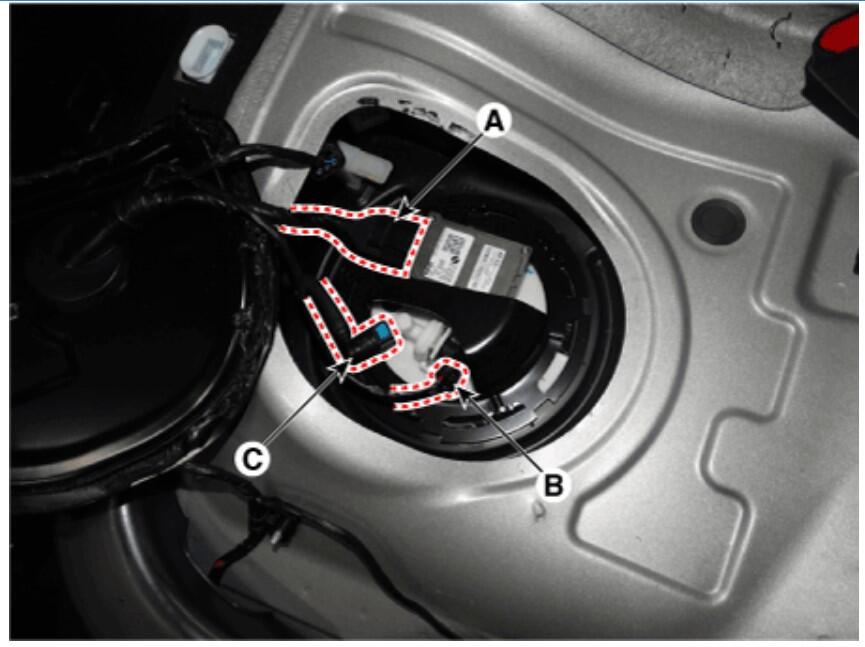

  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel feed tube quick-connector (C).
    G16186260Courtesy of HYUNDAI MOTOR AMERICA

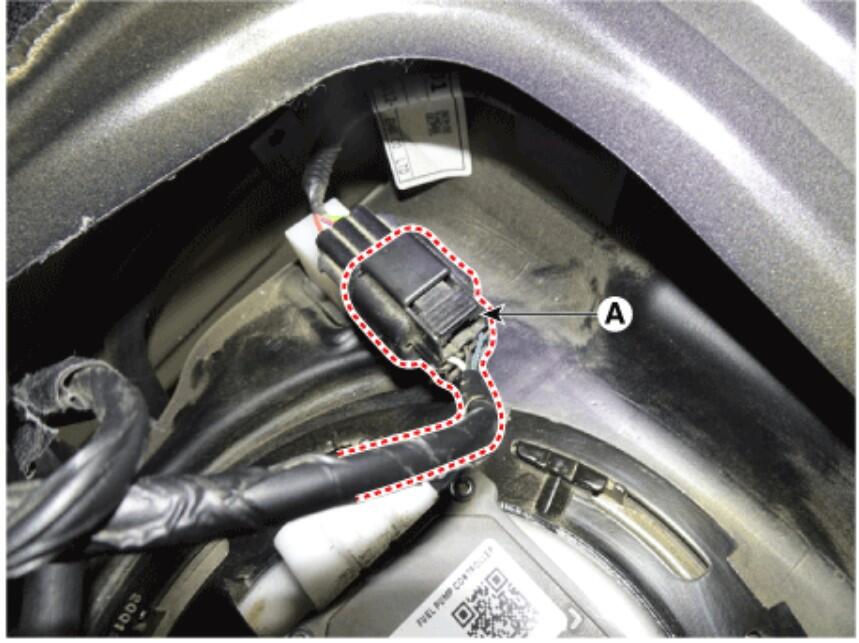

  8. Disconnect the fuel tank pressure sensor (A).
    G16186261Courtesy of HYUNDAI MOTOR AMERICA
  9. Lift the vehicle.
  10. Remove the center muffler assembly.

    (Engine Mechanical System - "Muffler")

  11. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

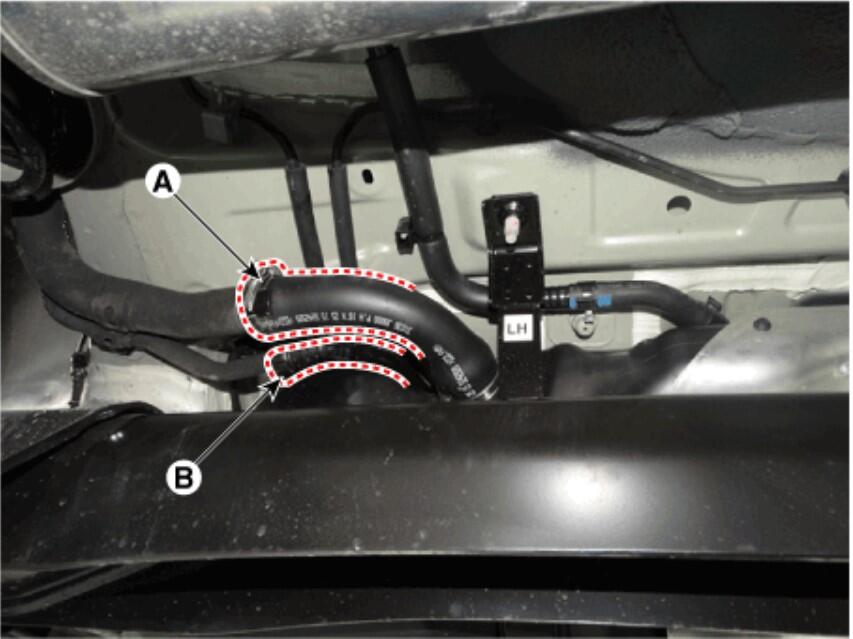

  12. Disconnect the fuel filler hose (A).
  13. Disconnect the ventilation tube (B).
    G16186262Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the leveling hose quick connector (C).
    G16186263Courtesy of HYUNDAI MOTOR AMERICA

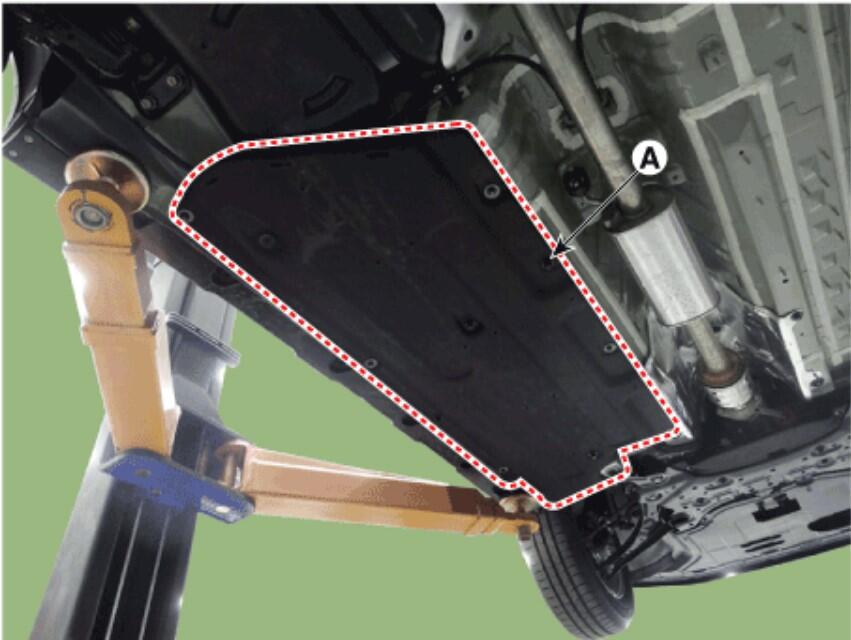

  15. Remove the side under cover (A).
    G16186264Courtesy of HYUNDAI MOTOR AMERICA

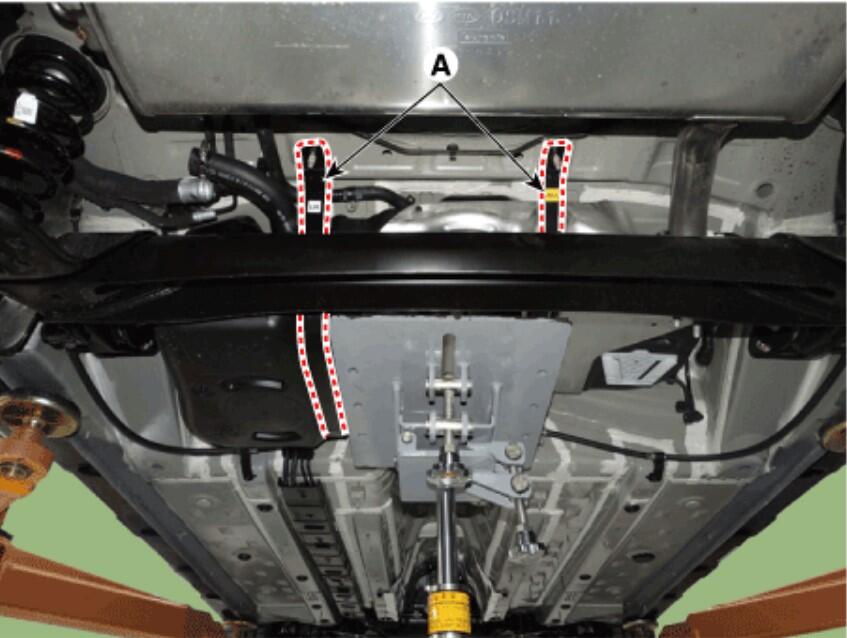

  16. Support the fuel tank with a jack.
  17. Remove the fuel tank from the vehicle after removing the fuel tank band nuts (A).

    Tightening torque:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

    G16186265Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
