Home › Hyundai › 2023 › Kona N › Repair and Diagnosis › Transmission › Automatic Trans › Dual Clutch Control System › Position Switch › Components & Components Location › Components

Components & Components Location: Components

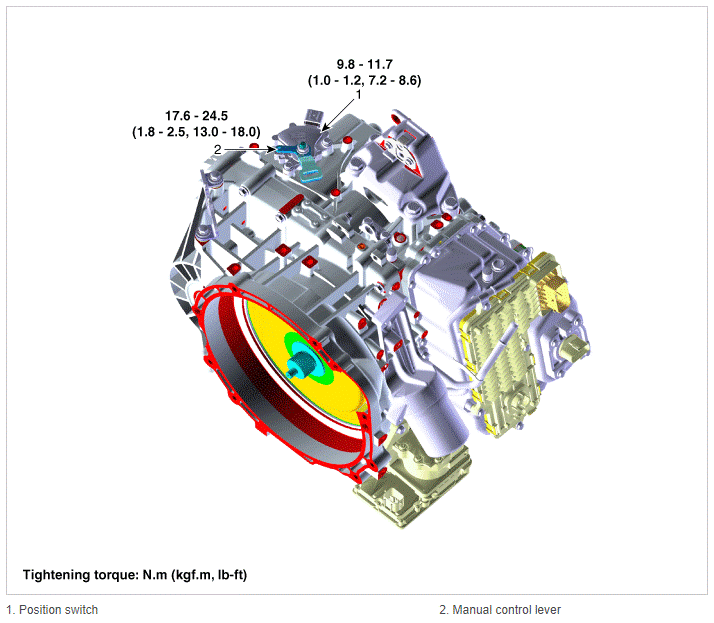

Fig 1: Position Switch Components Location With Torque Specification
G16186489Courtesy of HYUNDAI MOTOR AMERICA
