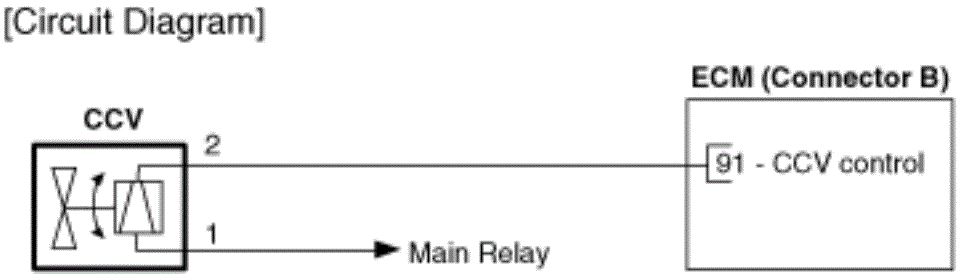

Circuit Diagram: Notes

G15477180Courtesy of HYUNDAI MOTOR AMERICA
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 Main Relay Battery Power (B+)
2 ECM Connector B (91) CCV control
