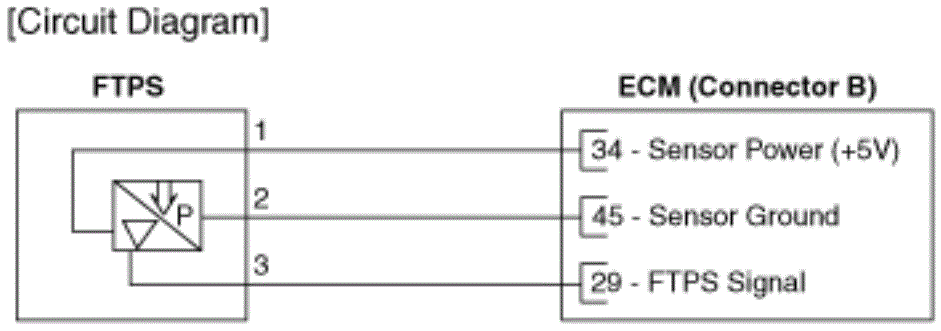

Circuit Diagram

G15477165Courtesy of HYUNDAI MOTOR AMERICA
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector-B (34) Sensor Power (+5V)
2 ECM Connector-B (45) Sensor Ground
3 ECM Connector-B (29) FTPS Signal
