Circuit Diagram: Notes

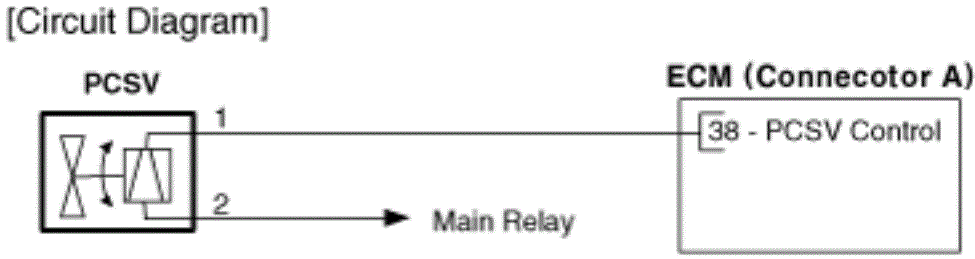

G15477151Courtesy of HYUNDAI MOTOR AMERICA
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected to Function
1 ECM Connector A (38) PCSV Control
2  Main Relay Power (B+)
