Repair Procedures: Removal
- Remove the negative (-) battery terminal.
- Remove the front seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")
- Remove the IMS unit after removing the screws.

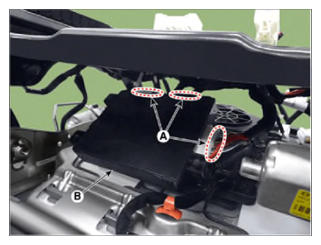

- Disconnect the IMS unit connectors (A) and remove the IMS unit (B).
