Repair Procedures: Inspection

  1. Disconnect the IMS control switch connector.

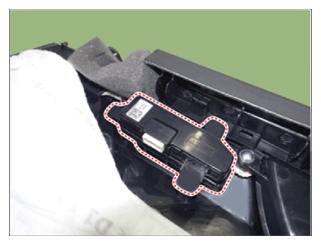

    G15473324Courtesy of HYUNDAI MOTOR AMERICA
  2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.
    Switch Connector terminal Resistance (Ω)
    SET 3-5 680
    1 1500
    2 3300
