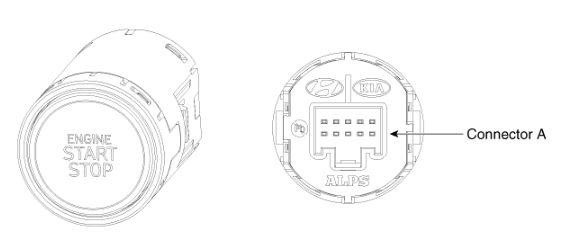

Components & Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector	Pin NO	Function
Courtesy of HYUNDAI MOTOR AMERICA	1	SSB switch 1_output
	2	-
	3	SSB symbol ILL (+)
	4	Immobilizer antenna power
	5	-
	6	Ground
	7	SSB Switch 2_output
	8	SSB symbol ILL (-)
	9	-
	10	Immobilizer antenna ground
