Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim. (Refer to Body - "TAILGATE TRIM ")

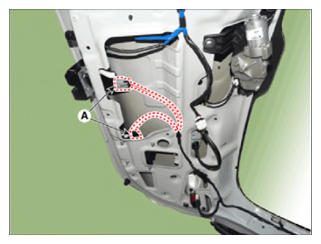

  3. Disconnect the power tailgate latch and PCU connector (A).
    G15473607Courtesy of HYUNDAI MOTOR AMERICA

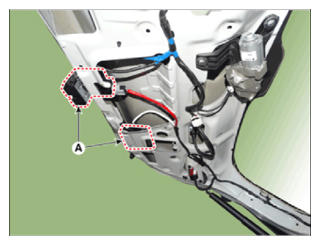

  4. Remove the power tailgate latch and PCU (A) assembly after loosening mounting nuts & bolts.
    G15473608Courtesy of HYUNDAI MOTOR AMERICA
