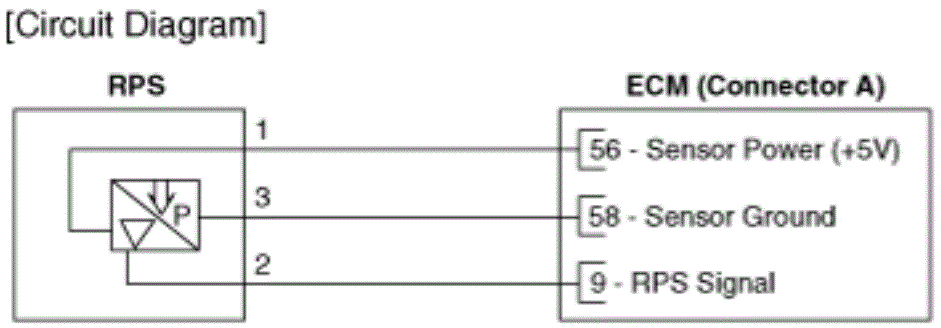

Circuit Diagram: Notes

G15477122Courtesy of HYUNDAI MOTOR AMERICA
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connection Function
1 ECM Connector A (56) Sensor Power (+6V)
2 ECM Connector A (9) HPS Signal
3 ECM Connector A (58) Sensor Ground
