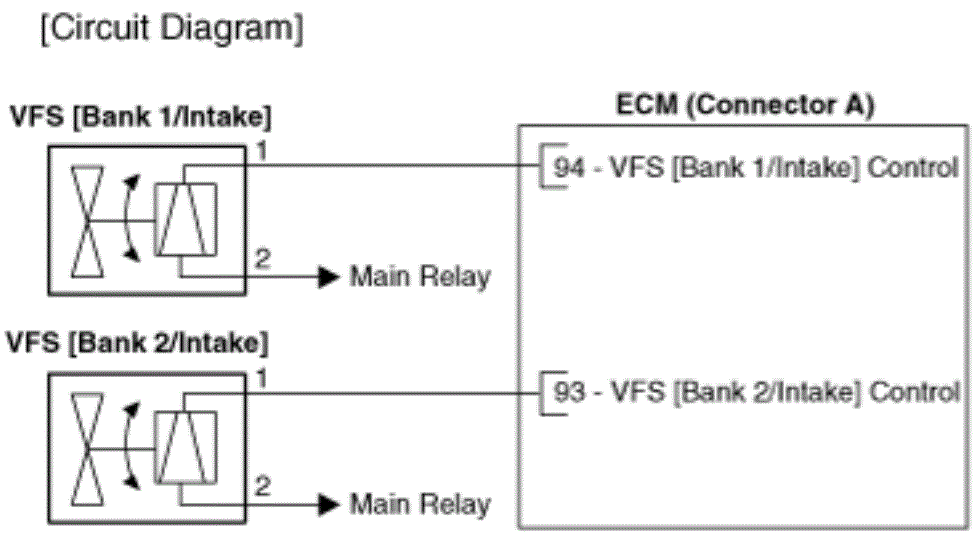

Circuit Diagram: Notes
[Connection Information
TERMINAL AND FUNCTION DESCRIPTION
| Terminal | Connected | Function |
|---|---|---|
| 1 | ECU Connector A (94) | VFS [Bank 1/Intake] Control |
| 2 | Mail Rely | Battery Power (B+) |
TERMINAL AND FUNCTION DESCRIPTION
| Terminal | Connected | Function |
|---|---|---|
| 1 | ECU Connector A (93) | VFS [Bank 2/Intake] Control |
| 2 | Mail Rely | Battery Power (B+) |
