Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

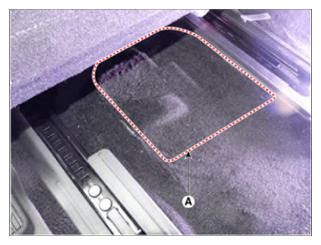

- Remove the floor carpet service cover (A).

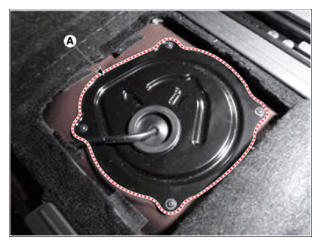

- Remove the fuel pump service cover (A) after loosening the mounting screws.

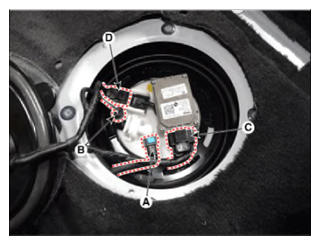

- Disconnect the fuel feed tube quick-connector (A) and fuel pressure sensor connector (B) and fuel pump control module (C).
- Disconnect the fuel tank pressure sensor connector (D).
- Remove the fuel pressure sensor from the fuel pump.
