Monitor Current Data

Ignition "OFF"
Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON"
Monitor following parameters in "Current Data" with GDS.

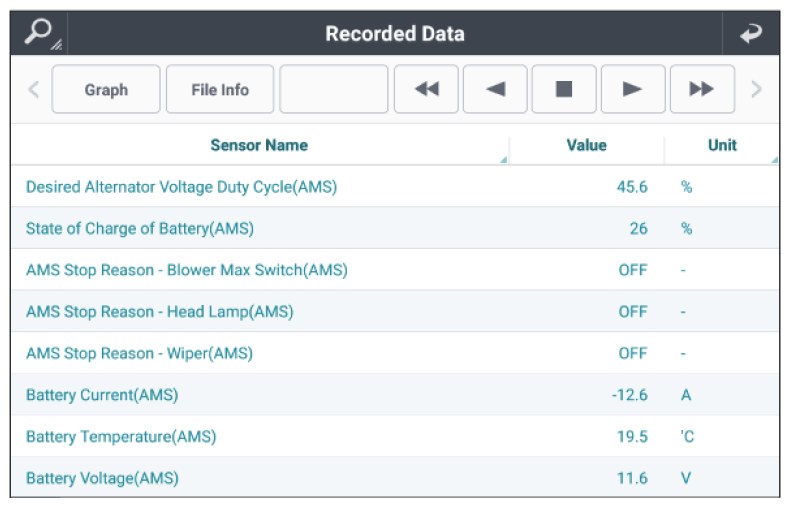

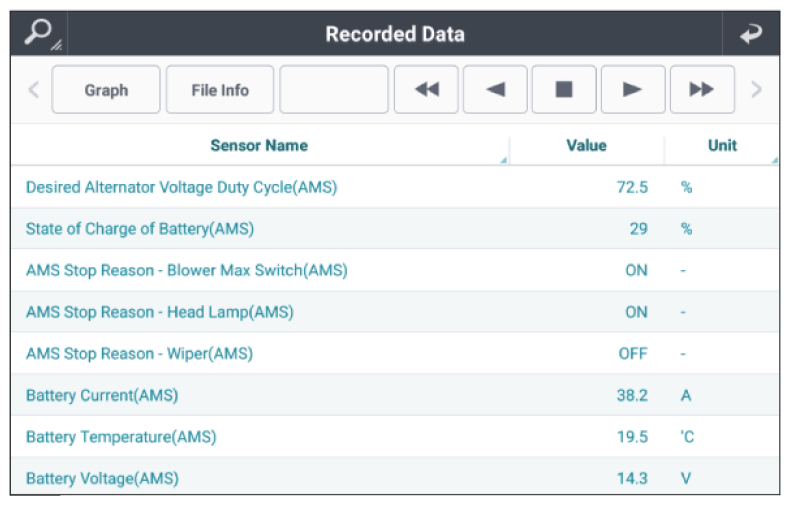

Specification: Refer to Figure below

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
