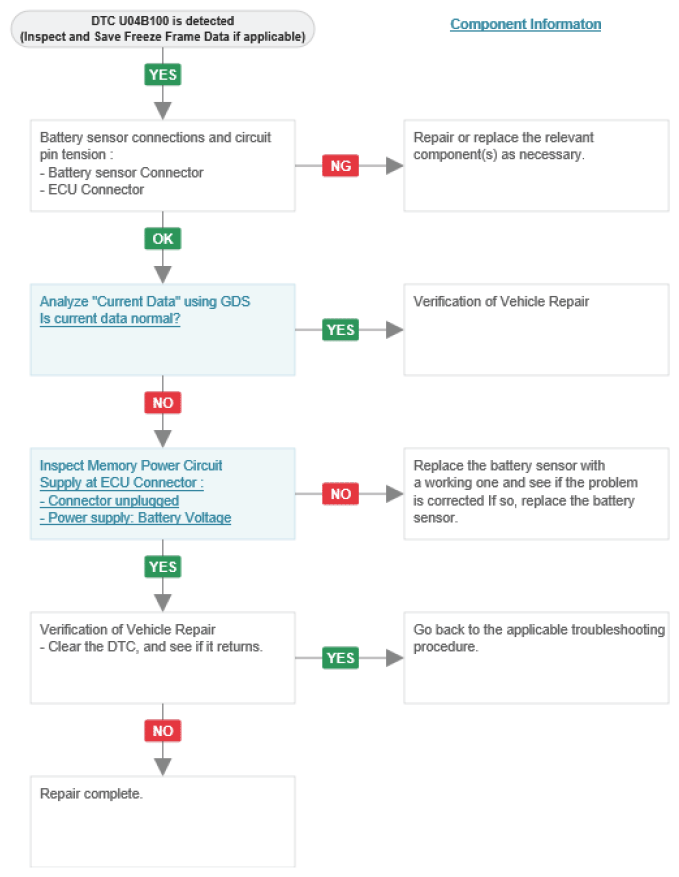

Home › Hyundai › 2023 › Palisade Calligraphy, FWD › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (9 Of 9) › DTC U04B1-00: Invalid Data Received From Battery Monitor Module › Troubleshooting › Diagnostic Flowchart
