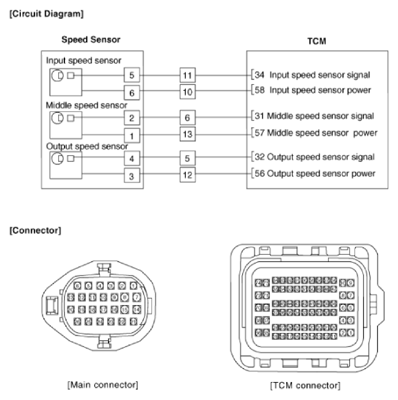

Home › Hyundai › 2023 › Palisade Calligraphy, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Speed Sensor › Schematic Diagrams › Circuit Diagram
