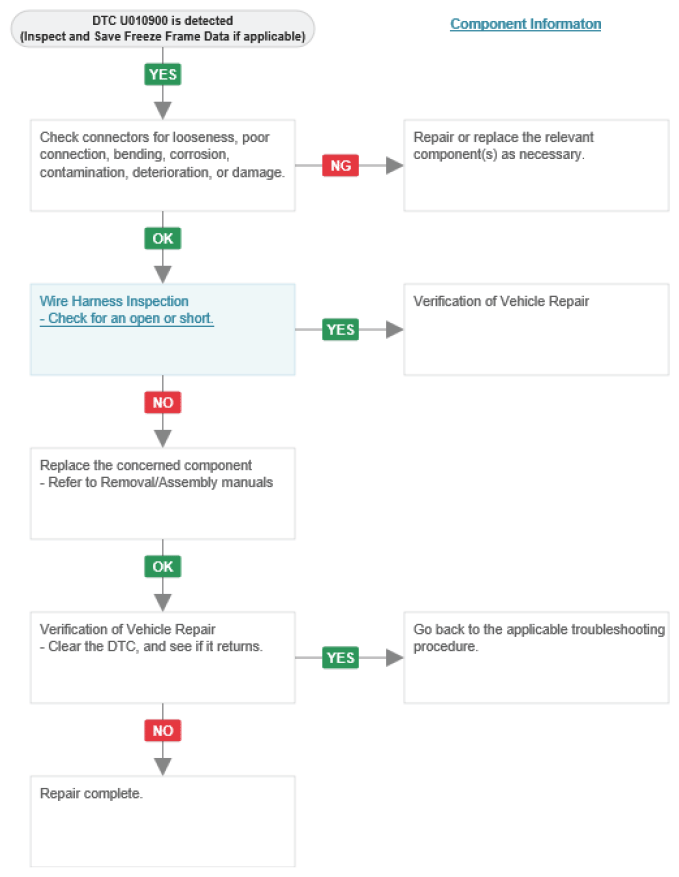

Home › Hyundai › 2023 › Palisade SEL, 4WD › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (9 Of 9) › DTC U0109-00: Lost Communication With Fuel Pump Control Module › Troubleshooting › Diagnostic Flowchart
