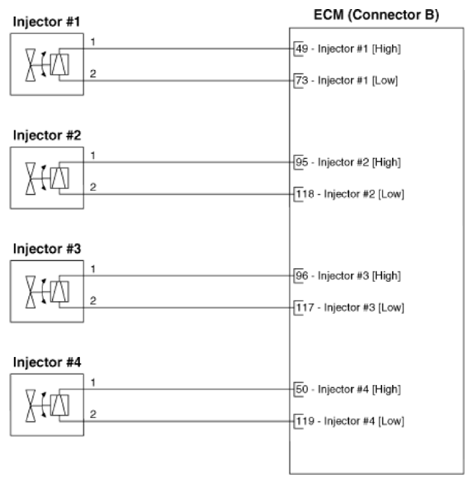

Home › Hyundai › 2023 › Santa Cruz SEL, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Injector › Schematic Diagrams › Circuit Diagram › GDI Injector
