Engine Control System Diagnosis - 2.5L (11 Of 16)
›
DTC P064D-00: Internal Control Module O2 Sensor Processor Performance Bank 1
›
Troubleshooting
›

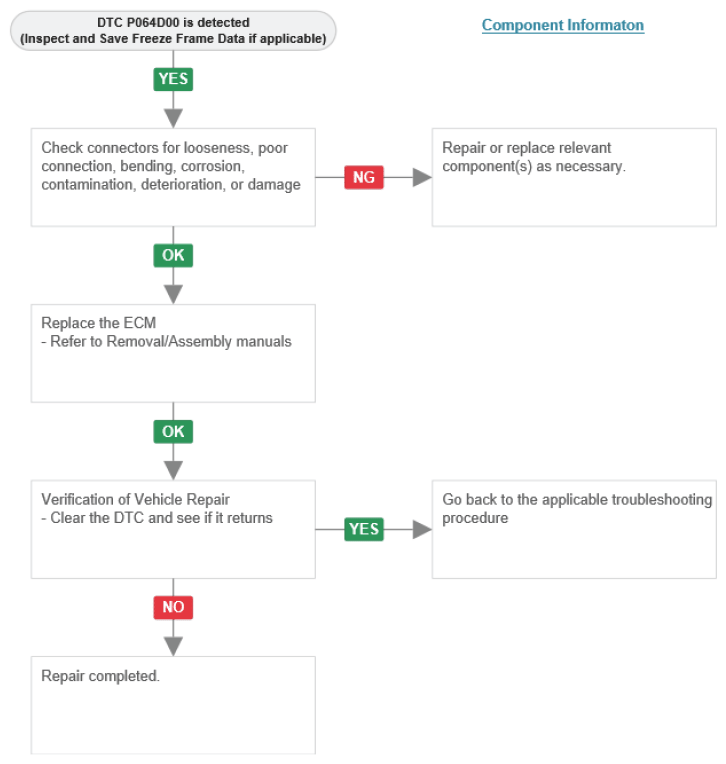

Diagnostic Flow-Chart
Diagnostic Flow-Chart
Courtesy of HYUNDAI MOTOR AMERICA
