Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the coupling assembly.

(Refer to 4 Wheel Drive (4WD) System - "DIRECT ELECTRO HYDRAULIC ACTUATOR COUPLING ")

NOTE:

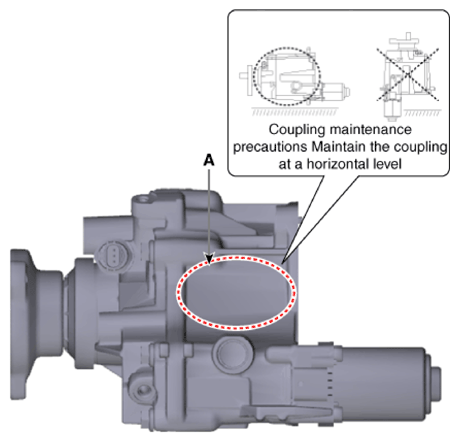

Keep it level with the sticker (A) on the top of the coupling.

G14775124

Courtesy of HYUNDAI MOTOR AMERICA

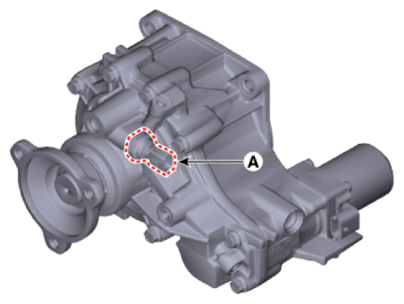

Remove the pressure sensor (A).
NOTE:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque:

10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
