Repair Procedures: Removal
CAUTION:
- After replacing with a new power tailgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power tailgate mode change.
(Refer to Power Tailgate Module - "TROUBLESHOOTING ")
- After replacing with a new power tailgate module, perform the system initialization. (Refer to Power Tailgate Module - "TROUBLESHOOTING ")
- Before delivery to customer, operate the power tailgate to be sure that there is no warning sound.
- Disconnect the negative (-) battery terminal.
- Remove the rear left luggage side trim. (Refer to Body - "LUGGAGE SIDE TRIM ")

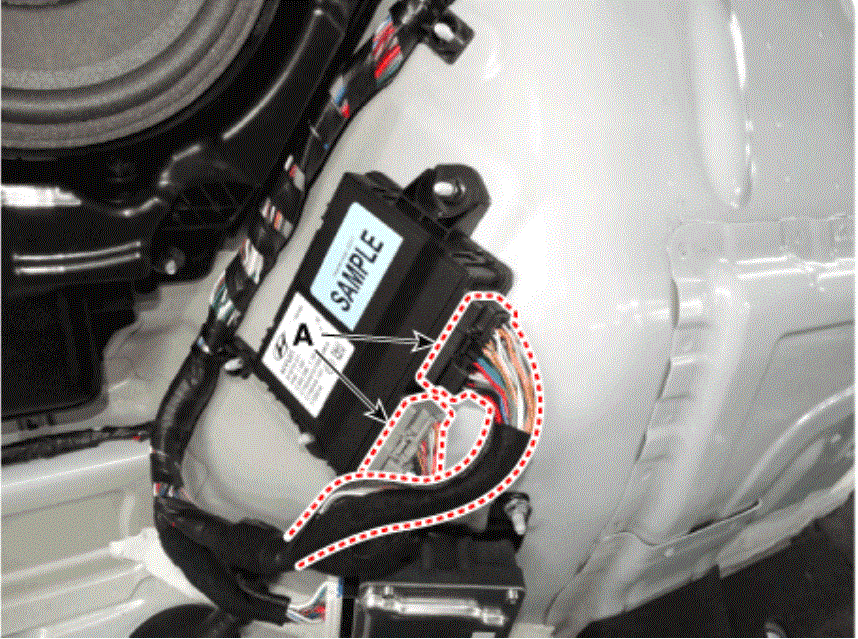

- Remove the power tailgate unit connectors (A).

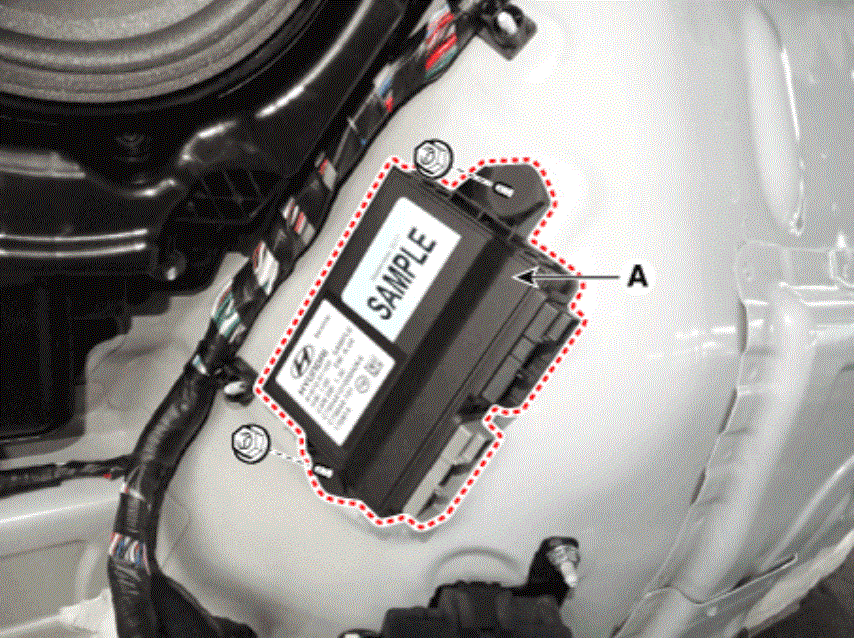

- Remove the power tailgate unit (A).
