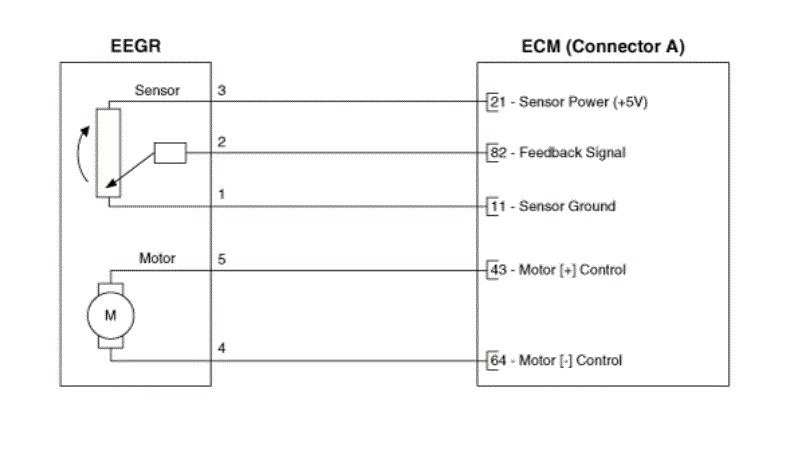

Home › Hyundai › 2023 › Santa Fe Plug-In Hybrid Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Electric Exhaust Gas Recirculation (EEGR) Control Valve › Schematic Diagrams › Circuit Diagram › Notes
