Repair Procedures: Removal

Shut off the high voltage circuit.
(Refer to Hybrid Control System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
Remove the air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")

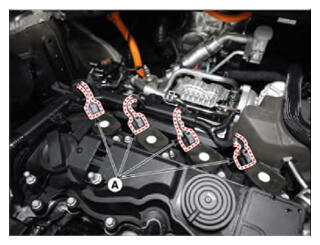

Disconnect the ignition coil connector (A).

G16146146

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push the clip.

G16146147

Courtesy of HYUNDAI MOTOR AMERICA

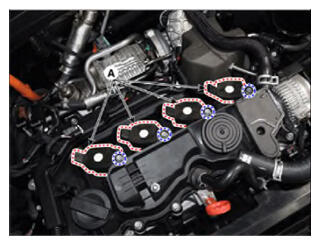

Remove the ignition coil (A) after loosening mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 13.3 - 16.0 lb.ft)
