Engine Control System Diagnosis (PHEV) (6 Of 8)
›
DTC P064A-00: Fuel Pump Control Module
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

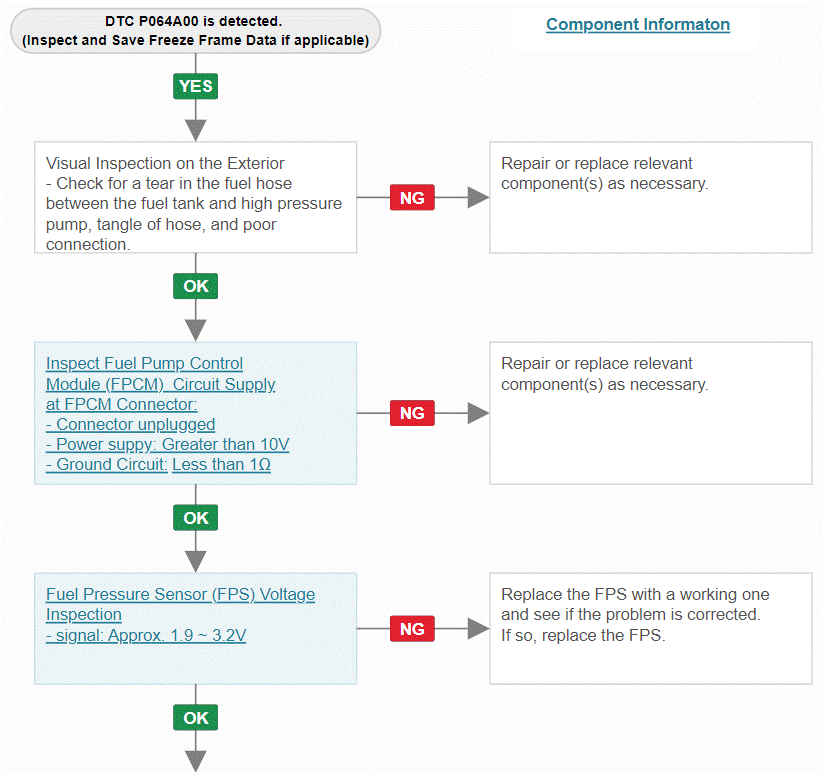

Fig 1: (1 of 2)
Courtesy of HYUNDAI MOTOR AMERICA

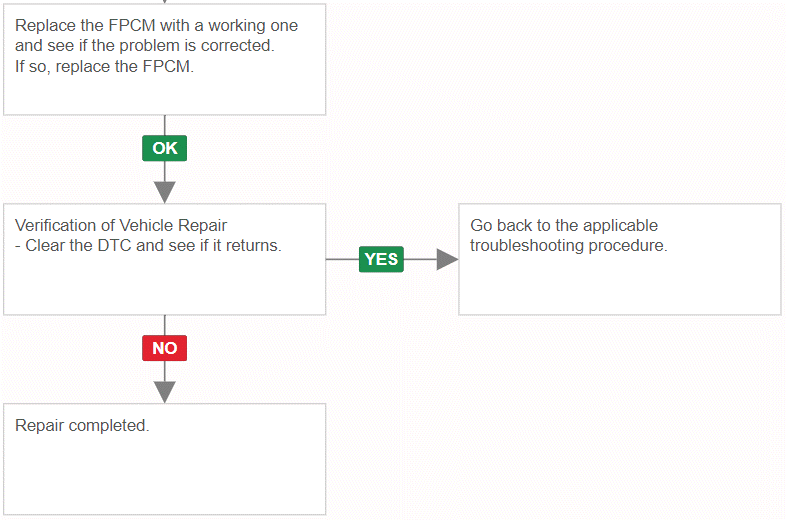

Fig 2: (2 of 2)
Courtesy of HYUNDAI MOTOR AMERICA
