Engine Control System Diagnosis (PHEV) (6 Of 8)
›
DTC P064D-00: Internal Control Module O2 Sensor Processor Performance Bank 1
›
Troubleshooting
›

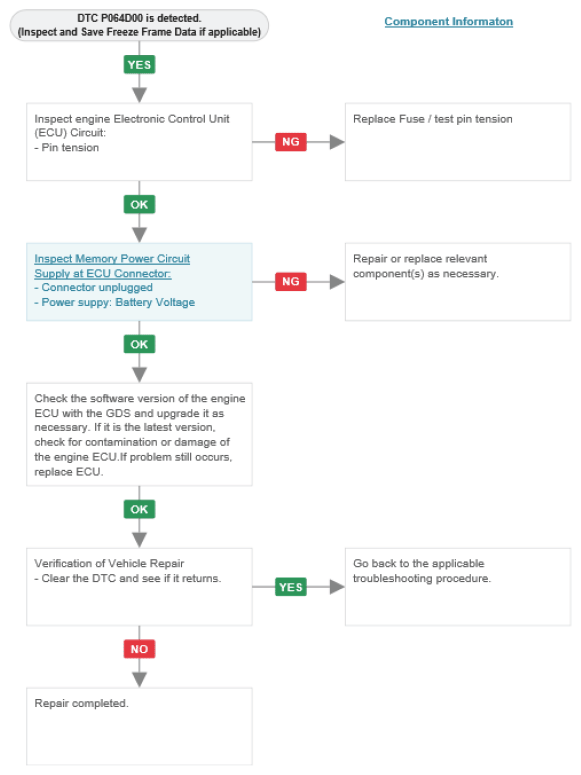

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
