Engine Control System Diagnosis (PHEV) (7 Of 8)
›
DTC P2237-00: O2 Sensor Pumping Current Circuit/Open (Bank 1 Sensor 1)
›
Troubleshooting
›

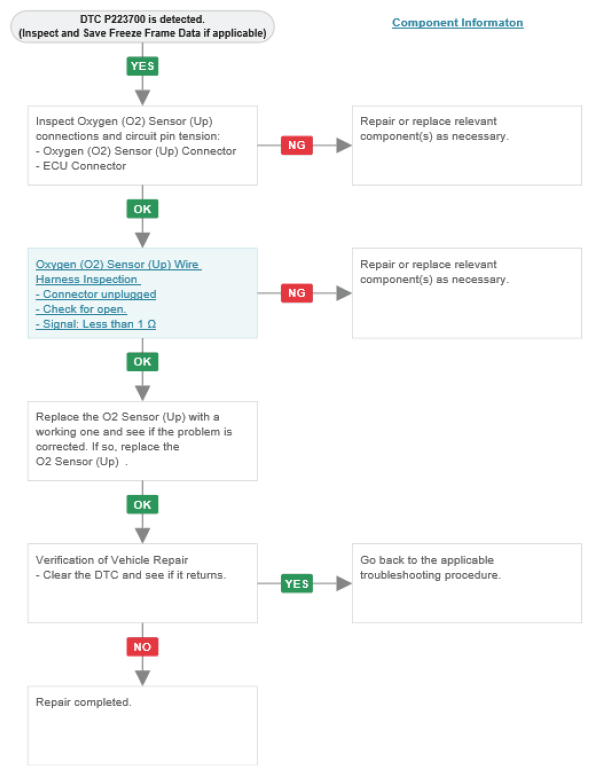

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
