Repair Procedures: Removal

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly System - "ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Disconnect the oil level sensor connector.

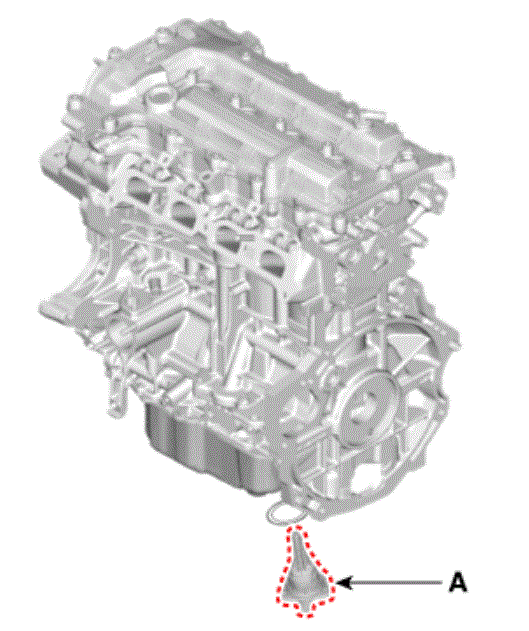

Remove the oil level sensor (A).
Tightening torque:

8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Always use a new gasket.
