Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the postive (+) battery cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

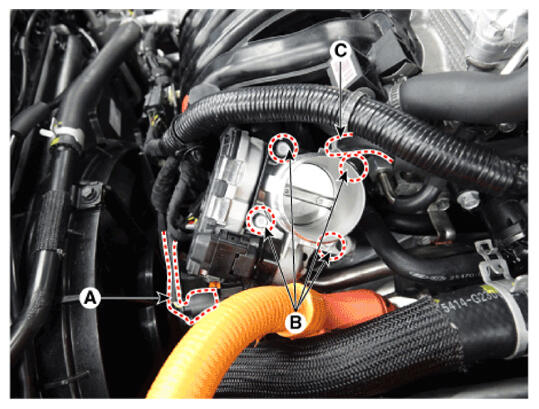

- Disconnect the ETC module connector (A).
- Remove the ETC module (B) from the engine after loosening the bolts.
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb-ft)
- Disconnect the vapor hose (C).
