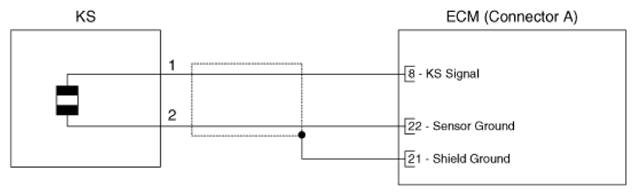

Home › Hyundai › 2024 › Elantra Hybrid Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram › Notes
