Repair Procedures: Installation

Check that the gear is shifted to "N".

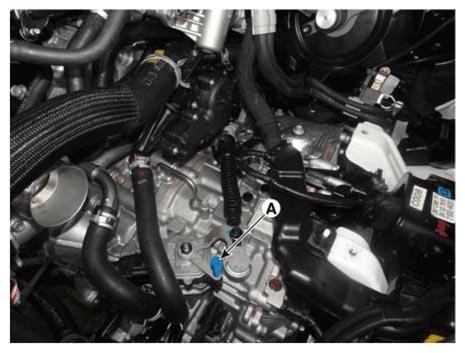

Lightly tighten the bolts after installing the position switch (A).
NOTE:
- Lightly tighten the bolts so that adjustment.
Courtesy of HYUNDAI MOTOR AMERICA

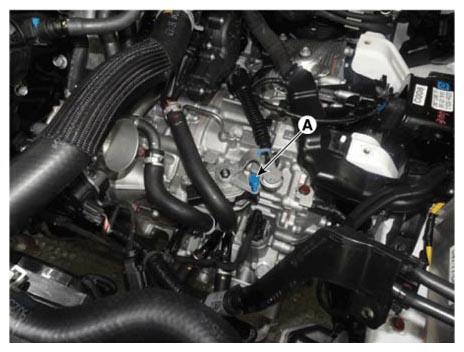

Install the position switch guide pin (A) SST No.: (09480-A3800).

Courtesy of HYUNDAI MOTOR AMERICA

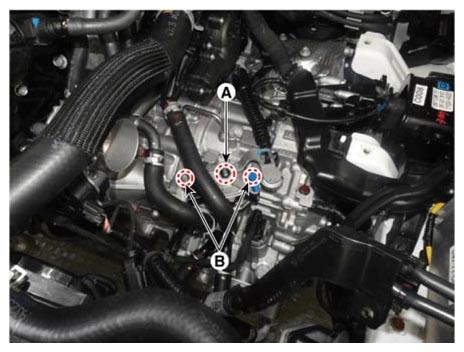

Tighten the manual control lever nut (A) and the position switch mounting bolts (B) with specified toque.

Tightening torque:

: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

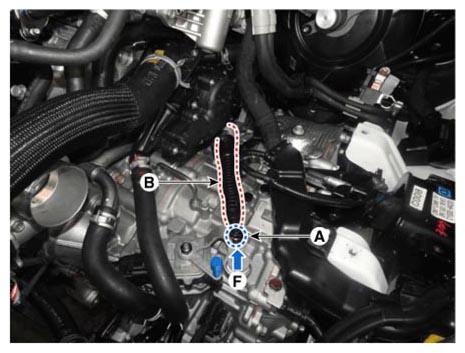

After pushing the "F" direction to remove the clearance, install the shift cable (B) and tighten the nut (A) to the specified torque.
Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

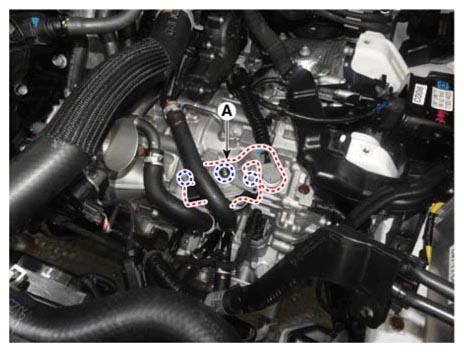

Remove the position switch guide pin SST No.: (09480-A3800) (A).

Courtesy of HYUNDAI MOTOR AMERICA

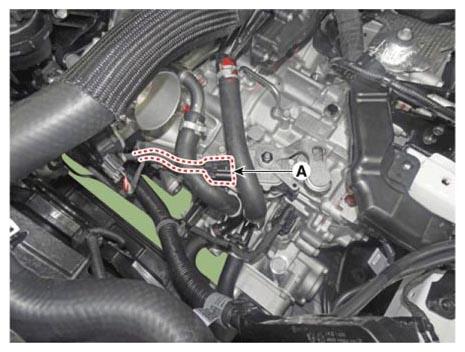

Connect the position switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
