Components And Components Location: Components

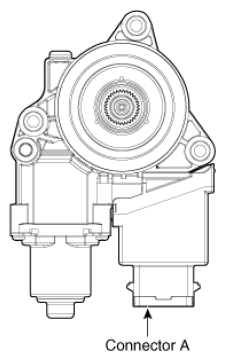

G16108923Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin NO Description
G16108925Courtesy of HYUNDAI MOTOR AMERICA
1 Switch 1
2 Enable
3 Battery (+)
4 Ground
5 -
6 -

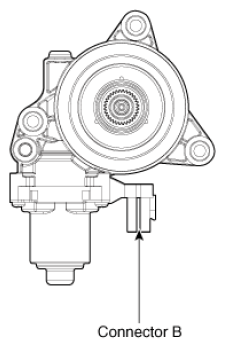

G16108924Courtesy of HYUNDAI MOTOR AMERICA
Connector B Pin NO Description
G16108926Courtesy of HYUNDAI MOTOR AMERICA
1 Down
2 up
