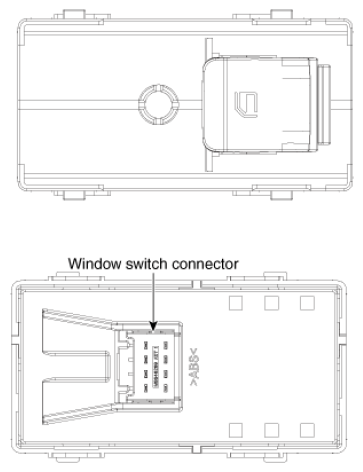

Sub Power Window Switch (Passenger)

Courtesy of HYUNDAI MOTOR AMERICA

Window switch connector	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Window motor (Up)
	2	-
	3	Window motor Down
	4	Driver side switch window motor (Up)
	5	Symbol lamp power
	6	Window lock power
	7	Ground
	8	Driver side switch window motor Down (Down)
