Components And Components Location: Components

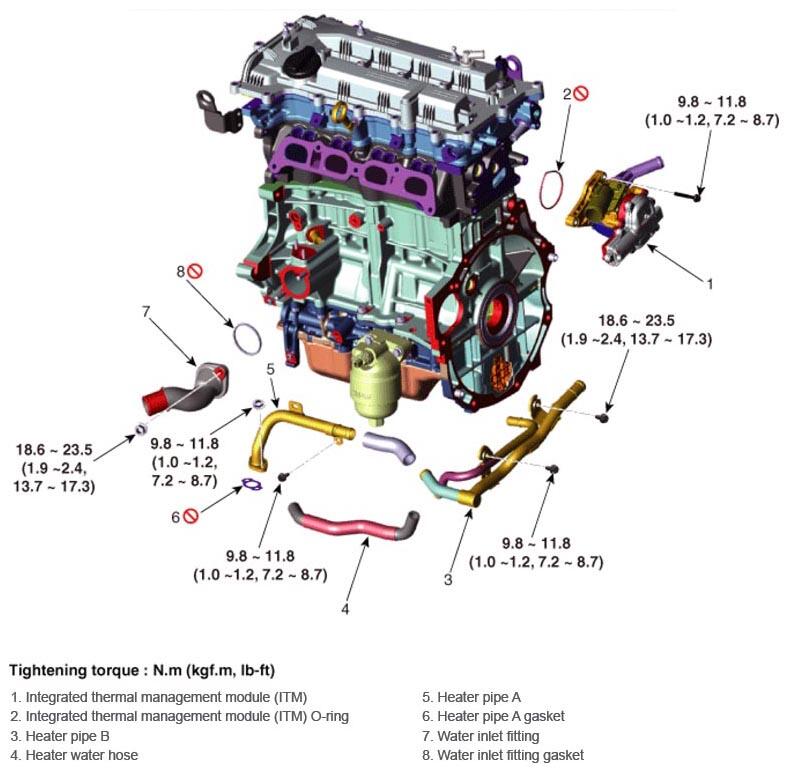

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
G16687352Courtesy of HYUNDAI MOTOR AMERICA
