Smart Key Code Saving

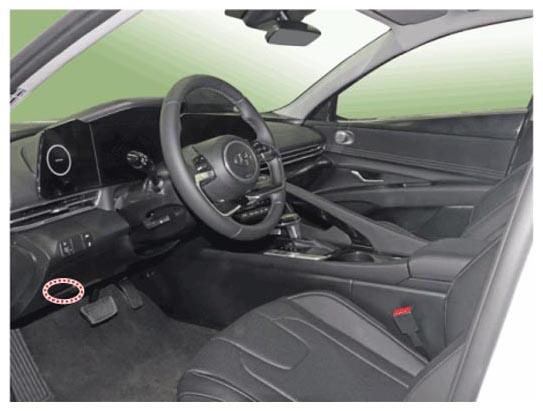

G16780770Courtesy of HYUNDAI MOTOR AMERICA
  1. Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
  2. Select the 'S/W Management' and 'Car model'.

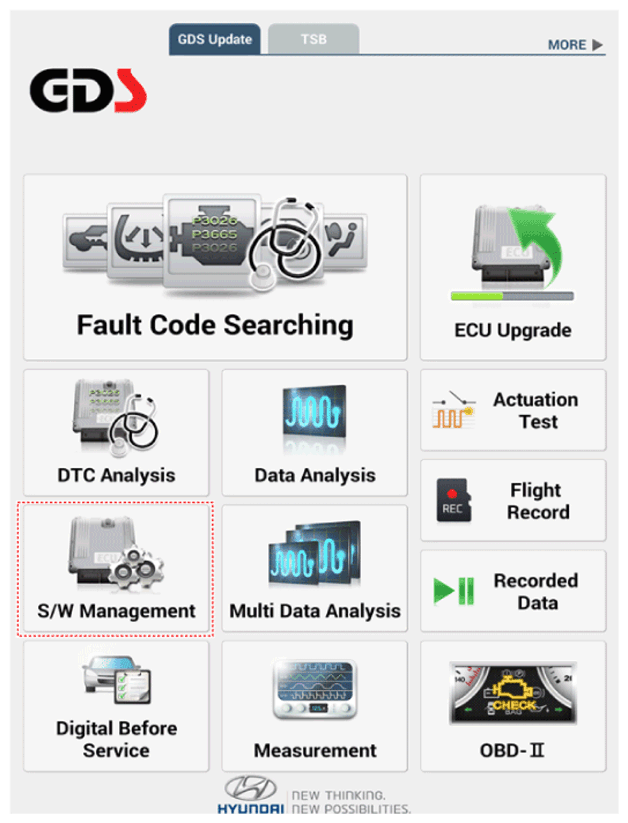

    G16780771Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.

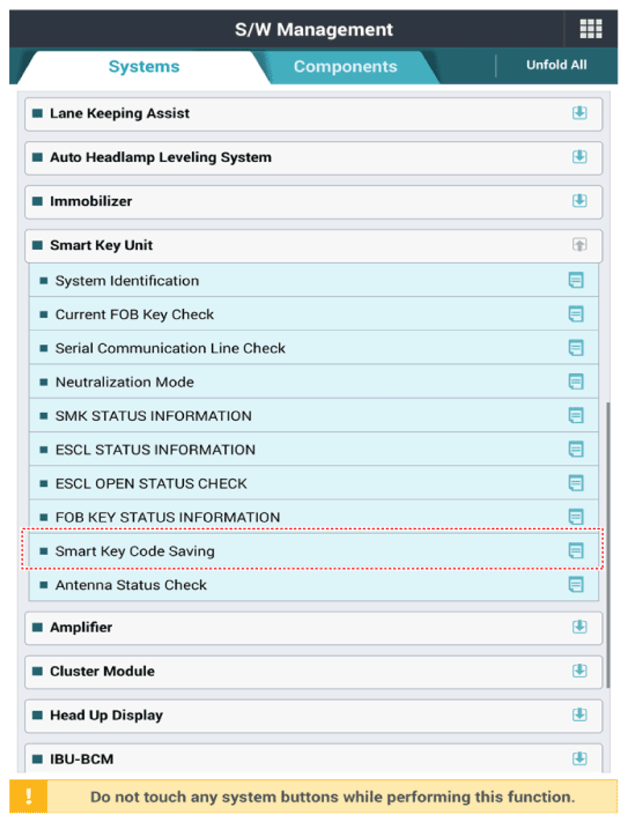

    G16780772Courtesy of HYUNDAI MOTOR AMERICA
  4. Follow the instructions on the screen.

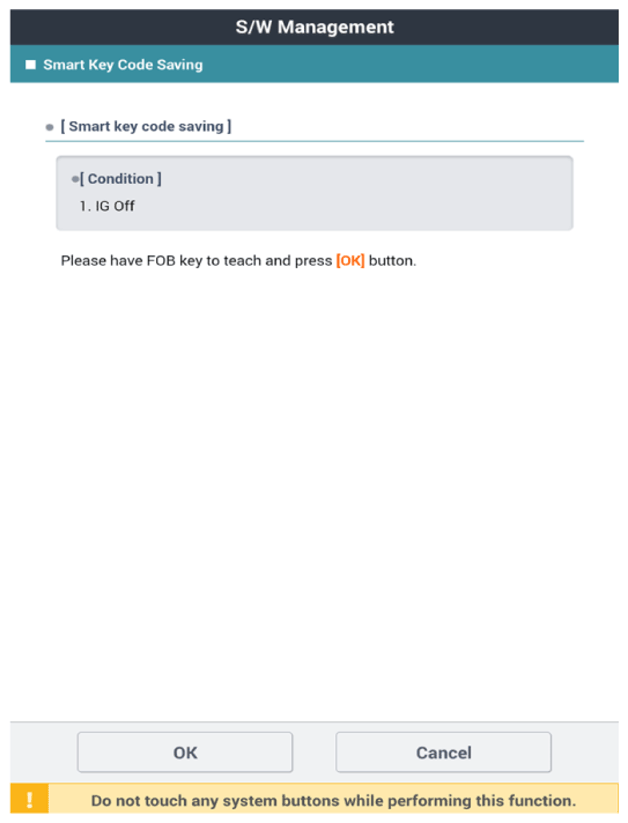

G16780773Courtesy of HYUNDAI MOTOR AMERICA
