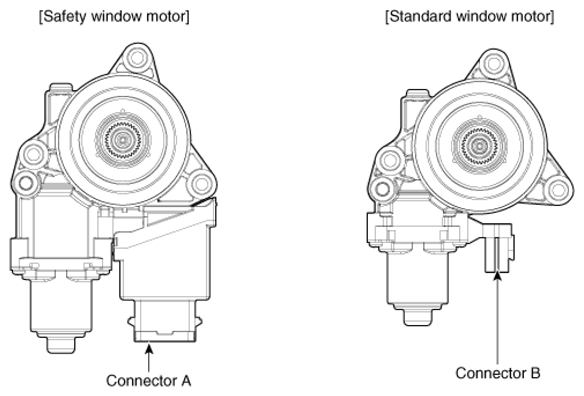

Components And Components Location: Components

G16781066Courtesy of HYUNDAI MOTOR AMERICA
Connector A
G16781067Courtesy of HYUNDAI MOTOR AMERICA
Pin No Description
1 Switdh 1
2 Enable
3 Battery (+)
4 Ground
5 -
6 -
Connector B
G16781068Courtesy of HYUNDAI MOTOR AMERICA
Pin No Description
1 Down
2 Up
